LED HIGH MAST G4S

LED HIGH MAST G4S

LED LIGHTING / OUTDOOR LED LIGHTING / LED HIGH MASTS G4S

LED HIGH MAST G4S



This LED High Mast G4S Light is designed especially for applications such as Port Lighting and Terminal lighting where the environment is by the sea and has a higher salt load, salt fog, and salt spray which can corrode surfaces and coatings on lighting. Our LED High Mast Light uses Die-Cast Aluminium and tempered glass with a PC lens which we have tested and make sure that the LED fixture is designed with the optimum protection against metal deterioration diminishing the defects of the corrosion and guaranteeing better performance, quality, and a longer lifespan of the fixtures. Customer satisfaction and safety will guaranteed.



LED High Masts G4S Applications :

  • Port and Terminal Lighting
  • Compound Lightings
  • Sports Complex
Part No. AVL-DMPL-P4-480
Power (W) 480
Lumen (lm) 62400
Efficiency (lm/W) 130
Colour Temperature, CCT (K) 5000K
Colour Rendering Index (CRI) ≥ 80
Beam Angle (°) 45°, 16°
Dimmable No



Input Voltage(VAC) 220 – 250
Power Factor (PF) ≥ 0.9
THD (%) ≤ 20
IP Rating IP 67
IK Rating IK 09
Materials Die Cast Aluminium and Tempered Glass with PC Lens
Driver External LED Driver (IP67)
Life Time (hours) 50000
Finishing Color Black
Operating Temp. (°C) -20°C ~ 50°C
Working Humidity (% RH) 10 ~ 90
Storage Temp. (°C) 10°C – 65°C

LED HIGH BAY AP SERIES

LED HIGH BAY AP SERIES

PRODUCTS / INDOOR LED LIGHTING / LED HIGH BAY AP SERIES

LED HIGH BAY AP SERIES



Our latest LED High Bay AP series is a cost-effective high bay light that combines high performance with a 130lm/w super high lumen output. The LED High Bay AP series ensures more than 50,000 hours of use. When installed in a warehouse and used for 8 hours a day, this LED High Bay can last nearly 20 years. This series also boasts an IP66 rating, providing protection against dust and strong jets of water from all directions. With its future-proof design, this LED High Bay will certainly meet your lighting needs.



Applications:
  • Warehouses
  • Factories
  • High Ceilings Areas
  • Ship Yard
  • Sports Complex
Part No. AVL-RKHBL200W-02-G9
Power (W) 200
Lumen (lm) 26000
Efficiency (lm/W) 130
Colour Temperature, CCT (K) 5000K
Colour Rendering Index (CRI) ≥ 80
Beam Angle (°) 120°
Dimmable No
Input Voltage(VAC) 220 – 250
Power Factor (PF) ≥ 0.9
THD (%) ≤ 20
IP Rating IP 65
IK Rating IK 10
Materials Aluminium & PC
Driver External Round LED Driver
Life Time (hours) 50,000
Finishing Color Black
Operating Temp. (°C) -20°C ~ 50°C
Working Humidity (% RH) 10 ~ 90
Storage Temp. (°C) 10°C – 65°C

Indoor or interior lighting

Indoor lighting for a building is the light source that is being integrated into the inner of the building for some general purpose such as brighten the room and give some special or desired effect to the room. The lighting in a home will changes the mood of person in the room just as it does the perceived size of a room. The lighting in a room either provides illumination for the entirety of the room, it highlights very specific elements. Fixture, placement and type of lighting are all the important aspects of indoor design, and they work in conjunction with color selections, size, availability of natural light and furniture selection. The elements that come together when the right lighting is achieved and this can transform a room into a seamless combination of functionality and style.

How indoor lighting affect us

There is a lots of research says that the effect of indoor light has on our emotional system. This is because the light will being perceived as heat, and the perception of heat can trigger our emotions. Beside that, indoor lighting regulates a lot of human behaviors and activities such as sleep and attentiveness. Research have state that students who study in environments with the natural day lighting can increase in their academic performance. Natural light is always preferred but not always attainable in a classroom or work environment. So, indoor light have affect us in our daily light, we need to be more careful when dealing with the purchasing and installation of indoor light.

LED HIGH BAY AP SERIES

A light fixture (US English), light fitting (UK English), or luminaire is an electrical device that contains an electric lamp that provides illumination. All light fixtures have a fixture body and one or more lamps. The lamps may be in sockets for easy replacement—or, in the case of some LED fixtures, hard-wired in place.

Fixtures may also have a switch to control the light, either attached to the lamp body or attached to the power cable. Permanent light fixtures, such as dining room chandeliers, may have no switch on the fixture itself, but rely on a wall switch.

Fixtures require an electrical connection to a power source, typically AC mains power, but some run on battery power for camping or emergency lights. Permanent lighting fixtures are directly wired. Movable lamps have a plug and cord that plugs into a wall socket.

Light fixtures may also have other features, such as reflectors for directing the light, an aperture (with or without a lens), an outer shell or housing for lamp alignment and protection, an electrical ballast or power supply, and a shade to diffuse the light or direct it towards a workspace (e.g., a desk lamp). A wide variety of special light fixtures are created for use in the automotive lighting industry, aerospace, marine and medicine sectors.

Portable light fixtures are often called lamps, as in table lamp or desk lamp. In technical terminology, the lamp is the light source, which, in casual terminology, is called the light bulb. The International Electrotechnical Commission (IEC) recommends the term luminaire for technical use.

Indoor Lighting Technology Trend In Fourth Industry Revolution

1) Connectivity–With LEDs comprehensively in the mainstream, the next frontier in lighting is controls. Call it smart, call it connected, call it what you like – the point is that your lights can be controlled. Controller and sensors have been around for donkey’s years, but the challenge now is to make them more sophisticated, get them to communicate with other devices and make sure people use them to perform more and more task.

2) The internet of things (IoT)-There are only computer , smart-phone and other smart device can be connected to web. With the internet of things(IoT) technology,  it’s no longer just computers and smart-phones that are connected to the web, but also your clothes, your coffee cup, your heart monitor and your LED lights. Lighting is an ideal network for internet-of-things services to be built on – because it’s already there in the ceiling of every building, looking down at us, wired up and ready to go. You only have to add a few sensors or controller so that it can make some data connection with other user.

3) Built-in light sources–Because LED light sources have good quality, so it don’t have to be replaced very often, and because no standards have emerged for what they should be like, manufacturers have got used to building them into fittings, rather than designing new luminaires around replaceable ‘lamps’. But what happens if they fail early? Or a better, more efficient module comes on the market? Organisations such as Zhaga have sought to address the issue by coming up with agreed designs, but integrated modules are becoming the norm. Will we regret lumbering our clients with light sources they can’t change?

GOVERNMENT PROCUREMENT PROCEDURE WORKSHOP FOR ELECTRICAL WORKS IN 2022

GOVERNMENT PROCUREMENT PROCEDURE WORKSHOP FOR ELECTRICAL WORKS IN 2022

PRODUCT EXHIBITION FOR THE GOVERNMENT PROCUREMENT PROCEDURE WORKSHOP FOR ELECTRICAL WORKS IN 2022

HOME / EVENTS / PRODUCT EXHIBITION FOR THE GOVERNMENT PROCUREMENT PROCEDURE WORKSHOP FOR ELECTRICAL WORKS IN 2022

PRODUCT EXHIBITION FOR THE GOVERNMENT PROCUREMENT PROCEDURE WORKSHOP FOR ELECTRICAL WORKS IN 2022

Date:  31 March 2022
Venue: Hotel Holmes, Gelang Patah, Johor

On the 31st of March, the Led Vision team has participated in a exhibition for the Government Procurement Procedure Workshop for Electrical Works in 2022.

The Objective of the Workshop is to find out the Do & Don’t and tips for completing the quotation document, and the errors that caused the quotation document to be rejected. In addition, we also learn what are the implications for the selection & quotation success in the future.

Aside from that, our team has participated in the exhibition by opening a booth and introducing our electrical equipment and product as well as our system. This helps us expand our business network reach and learn from other participants.

We had a great time at the exhibition and learn many things from it. Hope to attend more exhibitions and workshop like it.

Hotel Holmes, Gelang Patah

  • Access Street View By Dragging the To The Red Pin On The Google Map.

Contact Us Today – Speak With A Consultant

FACTORY ACCEPTANCE TEST PORT TANJUNG PELEPAS

FACTORY ACCEPTANCE TEST PORT TANJUNG PELEPAS

PORT TANJUNG PELEPAS FACTORY ACCEPTANCE TEST

HOME / EVENTS / PORT TANJUNG PELEPAS FACTORY ACCEPTANCE TEST

Port Tanjung Pelepas Factory Acceptance Test

Date: 29 March 2022
Venue: LED Vision Sdn Bhd HQ

We extend a warm welcome to the Port Tanjung Pelepas team, including Ir Jamaluddin Abu Bakar, En Fauzan Adnan, En Ashrulhadi, and their entire team.

The event commenced with a comprehensive introduction to our company, setting the stage for a detailed factory tour. This encompassed thorough product checks for QC, RTG, High Mast, High Bay, and Street Light. Concluding the visit, we meticulously verified stock quantities to ensure precision in our collaboration. We value this opportunity to showcase our commitment to quality and operational excellence, fostering a robust partnership with the esteemed Port Tanjung Pelepas team.

This visit not only strengthened our partnership but also laid the groundwork for future endeavors, reinforcing the mutual trust and understanding between our teams. We look forward to continued collaboration and shared success with Port Tanjung Pelepas.

Led Vision Sdn Bhd

  • Access Street View By Dragging the To The Red Pin On The Google Map.

Contact Us Today – Speak With A Consultant

NTIS SANDBOX FACTORY VISIT

NTIS SANDBOX FACTORY VISIT

NTIS SANDBOX FACTORY VISIT

HOME / EVENTS / NTIS SANDBOX FACTORY VISIT

NTIS SANDBOX FACTORY VISIT FOR THE 'AI TRAFFIC MELAKA PROJECT'

Date:  August 2021
Venue: LED Vision Sdn Bhd HQ

The visit from the Director of JKR Melaka and officers from the Malaysian Technology Development Corporation (MTDC) to LED Vision HQ marked a significant milestone in our collaboration for the ‘AI Traffic Melaka Project’ under the NTIS Sandbox initiative. Despite the challenges posed by the CMCO period, we were committed to ensuring a productive and safe visit.

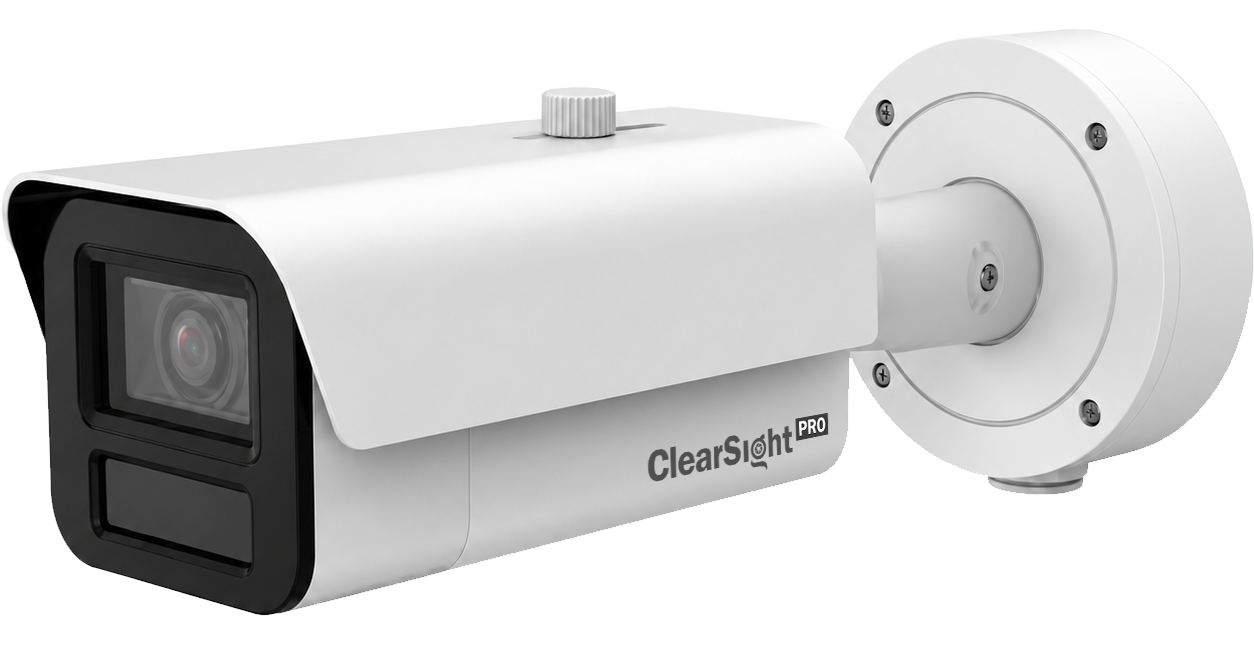

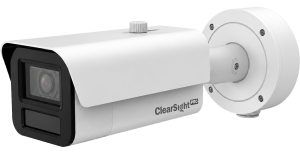

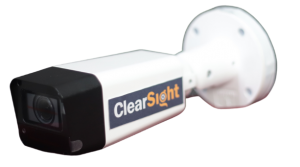

The event commenced with a warm welcome to the esteemed guests, and our Director, Mr. James Wong, provided a comprehensive introduction to LED Vision. This set the stage for a detailed presentation and demonstration of AdvanCTi, our innovative Smart City Solutions developed by our R&D Engineering Team.



*Due to CMCO period in effort to minimize the spread of COVID-19 disease, we strictly follow national SOP and guidelines during their visit.

Led Vision Sdn Bhd

  • Access Street View By Dragging the To The Red Pin On The Google Map.

Contact Us Today – Speak With A Consultant
