Wave Street Light G5

Wave Street Light G5

by | Apr 24, 2025

PRODUCTS / OUTDOOR LED LIGHTING / WAVE STREET LIGHT G5

WAVE STREET LIGHT G5

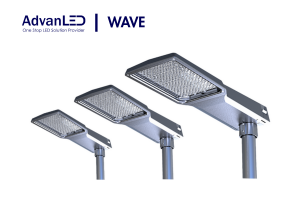

Introducing the AdvanLED Wave Street Light G5 — a next-generation LED lighting solution designed for roads, highways, and public spaces. Engineered with high-efficiency LEDs, rugged durability, and smart lighting compatibility, the G5 delivers powerful illumination while saving energy and reducing maintenance. Choose from a range of wattages and color temperatures to suit any environment.

Features and benefits

  • Automatic power off when opening cover
  • High Efficiency LED
  • Minimizing spill light and glare
  • It delivers over 140 lumens per watt for maximum brightness using minimal
    power.
  • Safe electric disconnector

Download PDF Here
Contact Our Sales
Feature Wave Street Light G5
Power Consumption 80W | 100W | 120W | 150W | 180W | 200W | 240W
Luminous Efficacy 130 lm/W
Colour Rendering Index (CRI) ≥70
Input Voltage 220-250
Power Factor (PF) ≥ 0.9
Spigot Opening (mm) ~ 66 (Spigot Adapter
Option Available)
Depth ≥ 100
Rated Current 0.3 – 1.05A
Beam Angle Type II &Type III
Dimmable Yes
THD (%) ≤ 20
IK Rating Ik09
IP Rating IP66
Product Code Product Description Power (W) Luminance (lm) CCT
LWSLX625080w735G5TP2MVNE00 Wave Street Light X625 80W 735 TP2 1-10V NEMA G5 80 10,400 3500K
LWSLX625080w740G5TP2MVNE00 Wave Street Light X625 80W 740 TP2 1-10V NEMA G5 80 10,400 4000K
LWSLX625080w757G5TP2MVNE00 Wave Street Light X625 80W 757 TP2 1-10V NEMA G5 80 10,400 5700K
LWSLX350100w735G5TP2MVNE00 Wave Street Light X350 100W 735 TP2 1-10V NEMA G5 100 13,000 3500K
LWSLX350100w740G5TP2MVNE00 Wave Street Light X350 100W 740 TP2 1-10V NEMA G5 100 13,000 4000K
LWSLX350100w757G5TP2MVNE00 Wave Street Light X350 100W 757 TP2 1-10V NEMA G5 100 13,000 5700K
LWSLX350120w735G5TP2MVNE00 Wave Street Light X350 120W 735 TP2 1-10V NEMA G5 120 15,600 3500K
LWSLX350120w740G5TP2MVNE00 Wave Street Light X350 120W 740 TP2 1-10V NEMA G5 120 15,600 4000K
LWSLX350120w757G5TP2MVNE00 Wave Street Light X350 120W 757 TP2 1-10V NEMA G5 120 15,600 5700K
LWSLX805150w735G5TP2MVNE00 Wave Street Light X805 150W 735 TP2 1-10V NEMA G5 150 19,500 3500K
LWSLX805150w740G5TP2MVNE00 Wave Street Light X805 150W 740 TP2 1-10V NEMA G5 150 19,500 4000K
LWSLX805150w757G5TP2MVNE00 Wave Street Light X805 150W 757 TP2 1-10V NEMA G5 150 19,500 5700K
LWSLX450180w735G5TP2MVNE00 Wave Street Light X450 180W 735 TP2 1-10V NEMA G5 180 23,400 3500K
LWSLX450180w740G5TP2MVNE00 Wave Street Light X450 180W 740 TP2 1-10V NEMA G5 180 23,400 4000K
LWSLX450180w757G5TP2MVNE00 Wave Street Light X450 180W 757 TP2 1-10V NEMA G5 180 23,400 5700K
LWSLX955200W735G5TP2MVNE00 Wave Street Light X955 200W 735 TP2 1-10V NEMA G5 200 26,000 3000K
LWSLX955200W740G5TP2MVNE00 Wave Street Light X955 200W 740 TP2 1-10V NEMA G5 200 26,000 4000K
LWSLX955200W757G5TP2MVNE00 Wave Street Light X955 200W 757 TP2 1-10V NEMA G5 200 26,000 5700K
LWSLX955240W735G5TP2MVNE00 Wave Street Light X955 240W 735 TP2 1-10V NEMA G5 240 31,200 3000K
LWSLX955240W740G5TP2MVNE00 Wave Street Light X955 240W 740 TP2 1-10V NEMA G5 240 31,200 4000K
LWSLX955240W757G5TP2MVNE00 Wave Street Light X955 240W 757 TP2 1-10V NEMA G5 240 31,200 5700K
Feature Wave Street Light G5
Materials Die cast aluminium & tempered glass
Driver External LED Driver
Life Time (hours) 50,000
Finishing Color Dark Grey
Operating Temp (°C) -20°C – 50°C
Working Humidity (%RH) 10-90
Storage Temp (°C) 10°C-65°C
Ambient Temp (°C) 35°C

Features

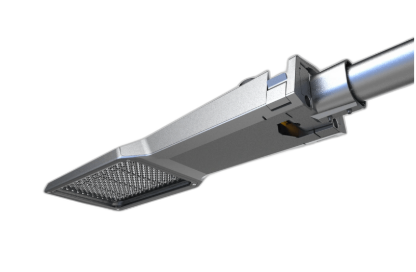

Durable build

Built rugged with die-cast aluminum housing and fitted with high efficiency LEDs

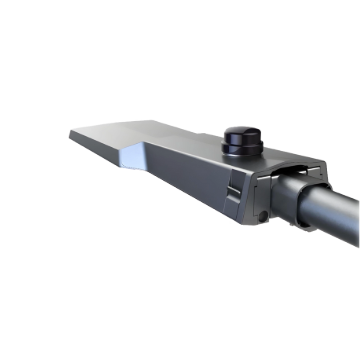

Nema Option

Allowing for seamless integration with smart lighting controls and sensor

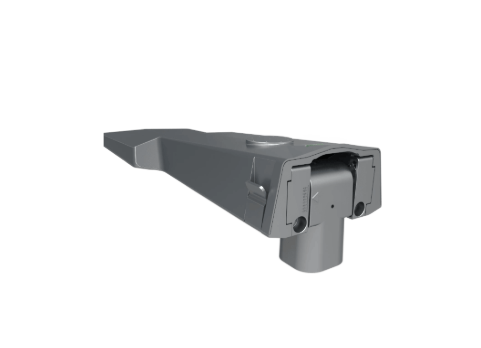

Adjustable Spigot

Ensures quick installation on different poles and mounting positions.

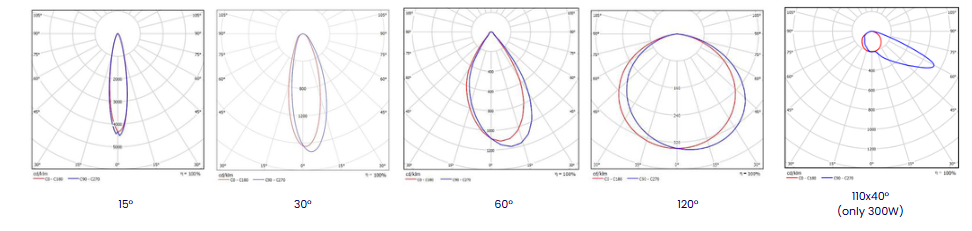

Light Distribution

The light distribution diagram shows a wide horizontal spread for maximum ground coverage and a focused vertical beam to reduce upward light spill. This ensures bright, even lighting with minimal light pollution—ideal for streets and public areas.

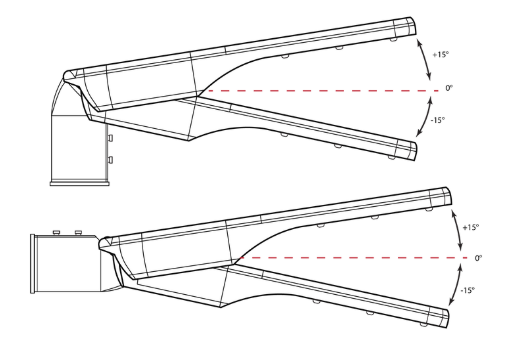

Dual Mounting Option

Horizontal and vertical mount

STREET LIGHT CERTIFICATION

JKR EMAL

Download

Sirim Tested

Download

Wave Flood Light

Wave Flood Light

by | Apr 24, 2025

PRODUCTS / OUTDOOR LED LIGHTING / WAVE FLOOD LIGHT

WAVE FLOOD LIGHT

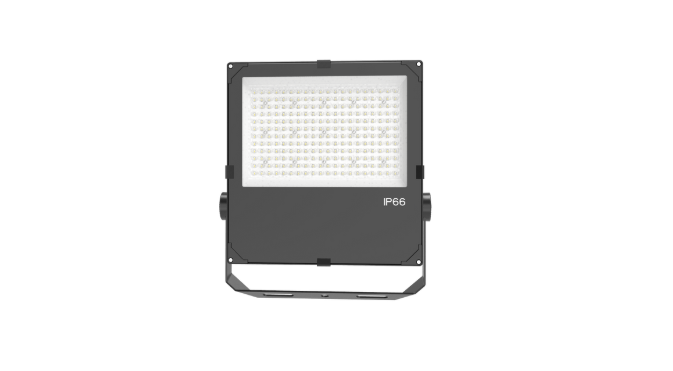

AdvanLED Wave Flood Light is a high-performance lighting solution designed for versatility, energy efficiency, and durability. Whether you’re illuminating large outdoor sports arenas, industrial spaces, architectural landmarks, or municipal zones, this Malaysian-engineered flood light ensures powerful, consistent brightness with minimal maintenance. With options ranging from 50W to 600W and a variety of beam angles and color temperatures, it’s the ultimate lighting tool for professionals seeking both performance and value.

Features and benefits

  • Energy efficiency performance – 150 lm/w
  • Lower energy consumption and maintenance costs provide long-term savings.
  • Long-lasting construction with high-quality materials for extended lifespan and
    reliability.

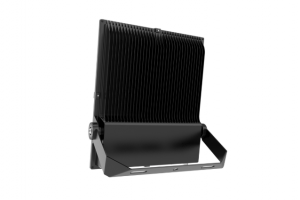

  • Efficient Heat Dissipation
  • Built in 15°(Optional), 30°(optional), 60°(optional), 120° lens (Standard) for better light distribution.
Download PDF Here
Contact Our Sales
Feature Wave Flood Light
Power Consumption 50W | 100W | 150W | 200W | 300W | 400W | 500W| | 600W
Colour Rendering Index (CRI) 80
Input Voltage 220-250
Input Frequency 50/60Hz
Power Factor (PF) ≥ 0.9
Beam Angle 90°
Dimmable No
THD (%) ≤ 20
IP Rating IP44
IK Rating IK08
Product Code Product Description Power (W) Luminance (lm) Luminous Efficacy (lm/W) CCT Beam Angle
LWFLX300050W830G5015SF0000 Wave Flood Light X300 50W 830 15D G5 50 7,500 150 3,000K 15°
LWFLX300050W830G5030SF0000 Wave Flood Light X300 50W 830 30D G5 50 7,500 150 3,000K 30°
LWFLX300050W830G5060SF0000 Wave Flood Light X300 50W 830 60D G5 50 7,500 150 4,000K 60°
LWFLX300050W840G5015SF0000 Wave Flood Light X300 50W 840 15D G5 50 7,500 150 4,000K 15°
LWFLX300050W840G5030SF0000 Wave Flood Light X300 50W 840 30D G5 50 7,500 150 6,500K 30°
LWFLX300050W840G5060SF0000 Wave Flood Light X300 50W 840 60D G5 50 7,500 150 6,500K 60°
LWFLX300050W840G5120SF0000 Wave Flood Light X300 50W 840 120D G5 50 7,500 150 3,000K 120°
LWFLX300050W865G5015SF0000 Wave Flood Light X300 50W 865 15D G5 50 7,500 150 3,000K 15°
LWFLX300050W865G5030SF0000 Wave Flood Light X300 50W 865 30D G5 50 7,500 150 4,000K 30°
LWFLX300050W865G5060SF0000 Wave Flood Light X300 50W 865 60D G5 50 7,500 150 4,000K 60°
LWFLX300050W865G5120SF0000 Wave Flood Light X300 50W 865 120D G5 50 7,500 150 6,500K 120°
LWFLX410100W830G5015SFS100 Wave Flood Light X410 100W 830 15D G5 50 7,500 150 6,500K 15°
LWFLX410100W830G5030SFS100 Wave Flood Light X410 100W 830 30D 10KA G5 100 15,000 150 3,000K 30°
LWFLX410100W830G5060SFS100 Wave Flood Light X410 100W 830 60D 10KA G5 100 15,000 150 3,000K 60°
LWFLX410100W840G5015SFS100 Wave Flood Light X410 100W 840 15D 10KA G5 100 15,000 150 4,000K 15°
LWFLX410100W840G5030SFS100 Wave Flood Light X410 100W 840 30D 10KA G5 100 15,000 150 4,000K 30°
LWFLX410100W840G5060SFS100 Wave Flood Light X410 100W 840 60D 10KA G5 100 15,000 150 6,500K 60°
LWFLX410100W865G5015SFS100 Wave Flood Light X410 100W 865 15D 10KA G5 100 15,000 150 6,500K 15°
LWFLX410100W865G5030SFS100 Wave Flood Light X410 100W 865 30D 10KA G5 150 22,500 150 3,000K 30°
LWFLX410100W865G5060SFS100 Wave Flood Light X410 100W 865 60D 10KA G5 150 22,500 150 3,000K 60°
LWFLX460150W830G5015SFS100 Wave Flood Light X460 150W 830 15D 10KA G5 150 22,500 150 4,000K 15°
LWFLX460150W830G5030SFS100 Wave Flood Light X460 150W 830 30D 10KA G5 150 22,500 150 4,000K 30°
LWFLX460150W830G5060SFS100 Wave Flood Light X460 150W 830 60D 10KA G5 150 22,500 150 6,500K 60°
LWFLX460150W830G5120SFS100 Wave Flood Light X460 150W 830 120D 10KA G5 150 22,500 150 6,500K 120°
LWFLX460150W840G5015SFS100 Wave Flood Light X460 150W 840 15D 10KA G5 150 22,500 150 3,000K 15°
LWFLX460150W840G5030SFS100 Wave Flood Light X460 150W 840 30D 10KA G5 150 22,500 150 3,000K 30°
LWFLX460150W840G5060SFS100 Wave Flood Light X460 150W 840 60D 10KA G5 150 22,500 150 4,000K 60°
LWFLX460150W840G5120SFS100 Wave Flood Light X460 150W 840 120D 10KA G5 150 22,500 150 4,000K 120°
LWFLX460150W865G5015SFS100 Wave Flood Light X460 150W 865 15D 10KA G5 150 22,500 150 6,500K 15°
LWFLX460150W865G5030SFS100 Wave Flood Light X460 150W 865 30D 10KA G5 150 22,500 150 6,500K 30°
LWFLX460150W865G5060SFS100 Wave Flood Light X460 150W 865 60D 10KA G5 150 22,500 150 6,500K 60°
LWFLX460150W865G5120SFS100 Wave Flood Light X460 150W 865 120D 10KA G5 150 22,500 150 6,500K 120°
LWFLX510200W830G5015SFS100 Wave Flood Light X510 200W 830 15D 10KA G5 200 30,000 150 3,000K 15°
LWFLX510200W830G5030SFS100 Wave Flood Light X510 200W 830 30D 10KA G5 200 30,000 150 3,000K 30°
LWFLX510200W830G5060SFS100 Wave Flood Light X510 200W 830 60D 10KA G5 200 30,000 150 3,000K 60°
LWFLX510200W840G5015SFS100 Wave Flood Light X510 200W 840 15D 10KA G5 200 30,000 150 4,000K 15°
LWFLX510200W840G5030SFS100 Wave Flood Light X510 200W 840 30D 10KA G5 200 30,000 150 4,000K 30°
LWFLX510200W840G5060SFS100 Wave Flood Light X510 200W 840 60D 10KA G5 200 30,000 150 4,000K 60°
LWFLX510200W865G5015SFS100 Wave Flood Light X510 200W 865 15D 10KA G5 200 30,000 150 6,500K 15°
LWFLX510200W865G5030SFS100 Wave Flood Light X510 200W 865 30D 10KA G5 200 30,000 150 6,500K 30°
LWFLX600300W830G6015SFS200 Wave Flood Light X600 300W 830 15D 20KA G6 300 51,000 170 3,000K 15°
LWFLX600300W830G6030SFS200 Wave Flood Light X600 300W 830 30D 20KA G6 300 51,000 170 3,000K 30°
LWFLX600300W830G6060SFS200 Wave Flood Light X600 300W 830 60D 20KA G6 300 51,000 170 3,000K 60°
LWFLX600300W830G6090SFS200 Wave Flood Light X600 300W 830 90D 20KA G6 300 51,000 170 3,000K 90°
LWFLX600300W830G6120SFS200 Wave Flood Light X600 300W 830 120D 20KA G6 300 51,000 170 3,000K 120°
LWFLX600300W840G6015SFS200 Wave Flood Light X600 300W 840 15D 20KA G6 300 51,000 170 4,000K 15°
LWFLX600300W840G6030SFS200 Wave Flood Light X600 300W 840 30D 20KA G6 300 51,000 170 4,000K 30°
LWFLX600300W840G6060SFS200 Wave Flood Light X600 300W 840 60D 20KA G6 300 51,000 170 4,000K 60°
LWFLX600300W840G6090SFS200 Wave Flood Light X600 300W 840 90D 20KA G6 300 51,000 170 4,000K 90°
LWFLX600300W840G6120SFS200 Wave Flood Light X600 300W 840 120D 20KA G6 300 51,000 170 4,000K 120°
LWFLX600300W865G6015SFS200 Wave Flood Light X600 300W 865 15D 20KA G6 300 51,000 170 6,500K 15°
LWFLX600300W865G6030SFS200 Wave Flood Light X600 300W 865 30D 20KA G6 300 51,000 170 6,500K 30°
LWFLX600300W865G6060SFS200 Wave Flood Light X600 300W 865 60D 20KA G6 300 51,000 170 6,500K 60°
LWFLX600300W865G6090SFS200 Wave Flood Light X600 300W 865 90D 20KA G6 300 51,000 170 6,500K 90°
LWFLX600300W865G6120SFS200 Wave Flood Light X600 300W 865 120D 20KA G6 300 51,000 170 6,500K 120°
LWFLX600400W830G6015SFS200 Wave Flood Light X600 400W 830 15D 20KA G6 400 68,000 170 3,000K 15°
LWFLX600400W830G6030SFS200 Wave Flood Light X600 400W 830 30D 20KA G6 400 68,000 170 3,000K 30°
LWFLX600400W830G6060SFS200 Wave Flood Light X600 400W 830 60D 20KA G6 400 68,000 170 3,000K 60°
LWFLX600400W830G6090SFS200 Wave Flood Light X600 400W 830 90D 20KA G6 400 68,000 170 3,000K 90°
LWFLX600400W830G6120SFS200 Wave Flood Light X600 400W 830 120D 20KA G6 400 68,000 170 3,000K 120°
LWFLX600400W840G6015SFS200 Wave Flood Light X600 400W 840 15D 20KA G6 400 68,000 170 4,000K 15°
LWFLX600400W840G6030SFS200 Wave Flood Light X600 400W 840 30D 20KA G6 400 68,000 170 4,000K 30°
LWFLX600400W840G6060SFS200 Wave Flood Light X600 400W 840 60D 20KA G6 400 68,000 170 4,000K 60°
LWFLX600400W840G6090SFS200 Wave Flood Light X600 400W 840 90D 20KA G6 400 68,000 170 4,000K 90°
LWFLX600400W840G6120SFS200 Wave Flood Light X600 400W 840 120D 20KA G6 400 68,000 170 4,000K 120°
LWFLX600400W865G6015SFS200 Wave Flood Light X600 400W 865 15D 20KA G6 400 68,000 170 6,500K 15°
LWFLX600400W865G6030SFS200 Wave Flood Light X600 400W 865 30D 20KA G6 400 68,000 170 6,500K 30°
LWFLX600400W865G6060SFS200 Wave Flood Light X600 400W 865 60D 20KA G6 400 68,000 170 6,500K 60°
LWFLX600400W865G6090SFS200 Wave Flood Light X600 400W 865 90D 20KA G6 400 68,000 170 6,500K 90°
LWFLX600400W865G6120SFS200 Wave Flood Light X600 400W 865 120D 20KA G6 400 68,000 170 6,500K 120°
LWFLX685200W865G6060SFS100 Wave Flood Light X685 200W 865 60D 10KA G6 200 30,000 150 3,000K 60°
LWFLX745500W830G6015SFS200 Wave Flood Light X745 500W 830 15D 20KA G6 500 85,000 170 3,000K 15°
LWFLX745500W830G6015SFS200 Wave Flood Light X745 500W 830 15D 20KA G6 500 85,000 170 3,000K 30°
LWFLX745500W830G6060SFS200 Wave Flood Light X745 500W 830 30D 20KA G6 500 85,000 170 3,000K 60°
LWFLX745500W830G6090SFS200 Wave Flood Light X745 500W 830 90D 20KA G6 500 85,000 170 3,000K 90°
LWFLX745500W830G6120SFS200 Wave Flood Light X745 500W 830 120D 20KA G6 500W 85,000 170 3,000K 120°
LWFLX745500W840G6015SFS200 Wave Flood Light X745 500W 840 15D 20KA G6 500W 85,000 170 4,000K 15°
LWFLX745500W840G6030SFS200 Wave Flood Light X745 500W 840 30D 20KA G6 500W 85,000 170 4,000K 30°
LWFLX745500W840G6060SFS200 Wave Flood Light X745 500W 840 60D 20KA G6 500W 85,000 170 4,000K 60°
LWFLX745500W840G6090SFS200 Wave Flood Light X745 500W 840 90D 20KA G6 500W 85,000 170 4,000K 90°
LWFLX745500W840G6120SFS200 Wave Flood Light X745 500W 840 120D 20KA G6 500W 85,000 170 4,000K 120°
LWFLX745500W865G6015SFS200 Wave Flood Light X745 500W 865 15D 20KA G6 500W 85,000 170 6,500K 15°
LWFLX745500W865G6030SFS200 Wave Flood Light X745 500W 865 30D 20KA G6 500W 85,000 170 6,500K 30°
LWFLX745500W865G6060SFS200 Wave Flood Light X745 500W 865 60D 20KA G6 500W 85,000 170 6,500K 60°
LWFLX745500W865G6090SFS200 Wave Flood Light X745 500W 865 90D 20KA G6 500W 85,000 170 6,500K 90°
LWFLX745500W865G6120SFS200 Wave Flood Light X745 500W 865 120D 20KA G6 500W 85,000 170 6,500K 120°
LWFLX745600W830G6015SFS200 Wave Flood Light X745 600W 830 15D 20KA G6 600W 102,000 170 3,000K 15°
LWFLX745600W830G6030SFS200 Wave Flood Light X745 600W 830 30D 20KA G6 600W 102,000 170 3,000K 30°
LWFLX745600W830G6060SFS200 Wave Flood Light X745 600W 830 60D 20KA G6 600W 102,000 170 3,000K 60°
LWFLX745600W830G6090SFS200 Wave Flood Light X745 600W 830 90D 20KA G6 600W 102,000 170 3,000K 90°
LWFLX745600W830G6120SFS200 Wave Flood Light X745 600W 830 120D 20KA G6 600W 102,000 170 3,000K 120°
LWFLX745600W840G6015SFS200 Wave Flood Light X745 600W 840 15D 20KA G6 600W 102,000 170 4,000K 15°
LWFLX745600W840G6030SFS200 Wave Flood Light X745 600W 840 30D 20KA G6 600W 102,000 170 4,000K 30°
LWFLX745600W840G6060SFS200 Wave Flood Light X745 600W 840 60D 20KA G6 600W 102,000 170 4,000K 60°
LWFLX745600W840G6090SFS200 Wave Flood Light X745 600W 840 90D 20KA G6 600W 102,000 170 4,000K 90°
LWFLX745600W840G6120SFS200 Wave Flood Light X745 600W 840 120D 20KA G6 600W 102,000 170 4,000K 120°
LWFLX745600W865G6015000000 Wave Flood Light X745 600W 865 15D 20KA G6 600W 102,000 170 6,500K 15°
LWFLX745600W865G6030SFS200 Wave Flood Light X745 600W 865 30D 20KA G6 600W 102,000 170 6,500K 30°
LWFLX745600W865G6060SFS200 Wave Flood Light X745 600W 865 60D 20KA G6 600W 102,000 170 6,500K 60°
LWFLX745600W865G6090SFS200 Wave Flood Light X745 600W 865 90D 20KA G6 600W 102,000 170 6,500K 90°
LWFLX745600W865G6120SFS200 Wave Flood Light X745 600W 865 120D 20KA G6 600W 102,000 170 6,500K 120°
Feature Wave Flood Light
Materials Die cast aluminium & tempered glass
Driver External LED Driver (within casing)
Life Time (hours) 50,000
Finishing Color Dark Grey
Operating Temp (°C) -20°C – 50°C
Working Humidity (%RH) 10-90
Storage Temp (°C) 10°C-65°C

Features

Durable Build

Long-lasting construction with
high-quality materials

External 10KA SPD

for 100W and above

Light Distribution

Light distribution is how light spreads from a fixture to an area. The AdvanLED Wave Flood Light offers beam angles from 15° to 120°. Narrow angles (15°–30°) focus light on specific spots, while wider angles (60°–120°) cover larger areas. This lets you choose the best spread for your lighting needs.
