Wave Street Light G5

Wave Street Light G5

by | Apr 24, 2025

Home › LED Lighting Solutions ›  Outdoor LED Lighting › Wave Street Light G5

WAVE STREET LIGHT G5

Introducing the AdvanLED Wave Street Light G5 — a next-generation LED lighting solution designed for roads, highways, and public spaces. Engineered with high-efficiency LEDs, rugged durability, and smart lighting compatibility, the G5 delivers powerful illumination while saving energy and reducing maintenance. Choose from a range of wattages and color temperatures to suit any environment.

Features and benefits

  • Automatic power off when opening cover
  • High Efficiency LED
  • Minimizing spill light and glare
  • It delivers over 140 lumens per watt for maximum brightness using minimal
    power.
  • Safe electric disconnector
Download Specs
Contact Our Sales
Overview Features Specification Applications Project Gallery

PRODUCT OVERVIEW



The AdvanLED Wave Street Light G5 is a high-performance LED street lighting solution engineered to deliver efficient, reliable, and uniform illumination for roads, highways, urban streets, and public spaces. Designed with high-efficiency LED technology and a durable housing, the G5 provides excellent lighting performance while helping reduce energy consumption and maintenance costs.

Available in multiple wattages and colour temperatures, the AdvanLED Wave Street Light G5 offers flexible configurations to meet different road layouts, lighting requirements, and environmental conditions. Its smart lighting compatibility also enables integration with modern lighting management and smart city systems, making it a future-ready solution for connected infrastructure.

Key Benefits:

  • High-efficiency LED performance
  • Energy-saving operation
  • Durable design for outdoor environments
  • Multiple wattage options
  • Multiple colour temperature options
  • Uniform and reliable road illumination
  • Smart lighting system compatible
  • Reduced maintenance requirements
  • Suitable for roads, highways, streets, and public areas


KEY FEATURES



Durable build

Built rugged with die-cast aluminum housing and fitted with high efficiency LEDs

Nema Option

Allowing for seamless integration with smart lighting controls and sensor

Adjustable Spigot

Ensures quick installation on different poles and mounting positions.



Light Distribution

The light distribution diagram shows a wide horizontal spread for maximum ground coverage and a focused vertical beam to reduce upward light spill. This ensures bright, even lighting with minimal light pollution—ideal for streets and public areas.

Dual Mounting Option

Horizontal and vertical mount

SPECIFICATION


Feature Wave Street Light G5
Power Consumption 80W | 100W | 120W | 150W | 180W | 200W | 240W
Luminous Efficacy 130 lm/W
Colour Rendering Index (CRI) ≥70
Input Voltage 220-250
Power Factor (PF) ≥ 0.9
Spigot Opening (mm) ~ 66 (Spigot Adapter
Option Available)
Depth ≥ 100
Rated Current 0.3 – 1.05A
Beam Angle Type II &Type III
Dimmable Yes
THD (%) ≤ 20
IK Rating Ik09
IP Rating IP66
Product Code Product Description Power (W) Luminance (lm) CCT
LWSLX625080w735G5TP2MVNE00 Wave Street Light X625 80W 735 TP2 1-10V NEMA G5 80 10,400 3500K
LWSLX625080w740G5TP2MVNE00 Wave Street Light X625 80W 740 TP2 1-10V NEMA G5 80 10,400 4000K
LWSLX625080w757G5TP2MVNE00 Wave Street Light X625 80W 757 TP2 1-10V NEMA G5 80 10,400 5700K
LWSLX350100w735G5TP2MVNE00 Wave Street Light X350 100W 735 TP2 1-10V NEMA G5 100 13,000 3500K
LWSLX350100w740G5TP2MVNE00 Wave Street Light X350 100W 740 TP2 1-10V NEMA G5 100 13,000 4000K
LWSLX350100w757G5TP2MVNE00 Wave Street Light X350 100W 757 TP2 1-10V NEMA G5 100 13,000 5700K
LWSLX350120w735G5TP2MVNE00 Wave Street Light X350 120W 735 TP2 1-10V NEMA G5 120 15,600 3500K
LWSLX350120w740G5TP2MVNE00 Wave Street Light X350 120W 740 TP2 1-10V NEMA G5 120 15,600 4000K
LWSLX350120w757G5TP2MVNE00 Wave Street Light X350 120W 757 TP2 1-10V NEMA G5 120 15,600 5700K
LWSLX805150w735G5TP2MVNE00 Wave Street Light X805 150W 735 TP2 1-10V NEMA G5 150 19,500 3500K
LWSLX805150w740G5TP2MVNE00 Wave Street Light X805 150W 740 TP2 1-10V NEMA G5 150 19,500 4000K
LWSLX805150w757G5TP2MVNE00 Wave Street Light X805 150W 757 TP2 1-10V NEMA G5 150 19,500 5700K
LWSLX450180w735G5TP2MVNE00 Wave Street Light X450 180W 735 TP2 1-10V NEMA G5 180 23,400 3500K
LWSLX450180w740G5TP2MVNE00 Wave Street Light X450 180W 740 TP2 1-10V NEMA G5 180 23,400 4000K
LWSLX450180w757G5TP2MVNE00 Wave Street Light X450 180W 757 TP2 1-10V NEMA G5 180 23,400 5700K
LWSLX955200W735G5TP2MVNE00 Wave Street Light X955 200W 735 TP2 1-10V NEMA G5 200 26,000 3000K
LWSLX955200W740G5TP2MVNE00 Wave Street Light X955 200W 740 TP2 1-10V NEMA G5 200 26,000 4000K
LWSLX955200W757G5TP2MVNE00 Wave Street Light X955 200W 757 TP2 1-10V NEMA G5 200 26,000 5700K
LWSLX955240W735G5TP2MVNE00 Wave Street Light X955 240W 735 TP2 1-10V NEMA G5 240 31,200 3000K
LWSLX955240W740G5TP2MVNE00 Wave Street Light X955 240W 740 TP2 1-10V NEMA G5 240 31,200 4000K
LWSLX955240W757G5TP2MVNE00 Wave Street Light X955 240W 757 TP2 1-10V NEMA G5 240 31,200 5700K
Feature Wave Street Light G5
Materials Die cast aluminium & tempered glass
Driver External LED Driver
Life Time (hours) 50,000
Finishing Color Dark Grey
Operating Temp (°C) -20°C – 50°C
Working Humidity (%RH) 10-90
Storage Temp (°C) 10°C-65°C
Ambient Temp (°C) 35°C

APPLICATIONS


Smart Pole

Highways

Urban & City Roads

Residential Streets
Qubit Solar Street Light

Industrial Areas
Qubit Solar Street Light

Commercial Areas


CERTIFICATIONS



JKR EMAL

Download

Sirim Tested

Download

Wave Flood Light

Wave Flood Light

by | Apr 24, 2025

Home › LED Lighting Solutions ›  Outdoor LED Lighting › Wave Flood Light

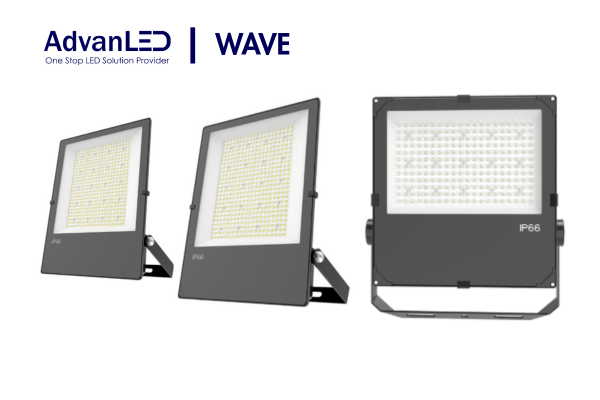

WAVE FLOOD LIGHT

AdvanLED Wave Flood Light is a high-performance lighting solution designed for versatility, energy efficiency, and durability. Whether you’re illuminating large outdoor sports arenas, industrial spaces, architectural landmarks, or municipal zones, this Malaysian-engineered flood light ensures powerful, consistent brightness with minimal maintenance. With options ranging from 50W to 600W and a variety of beam angles and color temperatures, it’s the ultimate lighting tool for professionals seeking both performance and value.

Features and benefits

  • Energy efficiency performance – 150 lm/w
  • Lower energy consumption and maintenance costs provide long-term savings.
  • Long-lasting construction with high-quality materials for extended lifespan and
    reliability.
  • Efficient Heat Dissipation
  • Built in 15°(Optional), 30°(optional), 60°(optional), 120° lens (Standard) for better light distribution.
Download Specs
Contact Our Sales
Overview Features Specification Applications Project Gallery

KEY FEATURES



Durable Build

Long-lasting construction with
high-quality materials

External 10KA SPD

for 100W and above

Light Distribution

Light distribution is how light spreads from a fixture to an area. The AdvanLED Wave Flood Light offers beam angles from 15° to 120°. Narrow angles (15°–30°) focus light on specific spots, while wider angles (60°–120°) cover larger areas. This lets you choose the best spread for your lighting needs.

SPECIFICATION


Feature Wave Flood Light
Power Consumption 50W | 100W | 150W | 200W | 300W | 400W | 500W| | 600W
Colour Rendering Index (CRI) 80
Input Voltage 220-250
Input Frequency 50/60Hz
Power Factor (PF) ≥ 0.9
Beam Angle 90°
Dimmable No
THD (%) ≤ 20
IP Rating IP44
IK Rating IK08
Product Code Product Description Power (W) Luminance (lm) Luminous Efficacy (lm/W) CCT Beam Angle
LWFLX300050W830G5015SF0000 Wave Flood Light X300 50W 830 15D G5 50 7,500 150 3,000K 15°
LWFLX300050W830G5030SF0000 Wave Flood Light X300 50W 830 30D G5 50 7,500 150 3,000K 30°
LWFLX300050W830G5060SF0000 Wave Flood Light X300 50W 830 60D G5 50 7,500 150 4,000K 60°
LWFLX300050W840G5015SF0000 Wave Flood Light X300 50W 840 15D G5 50 7,500 150 4,000K 15°
LWFLX300050W840G5030SF0000 Wave Flood Light X300 50W 840 30D G5 50 7,500 150 6,500K 30°
LWFLX300050W840G5060SF0000 Wave Flood Light X300 50W 840 60D G5 50 7,500 150 6,500K 60°
LWFLX300050W840G5120SF0000 Wave Flood Light X300 50W 840 120D G5 50 7,500 150 3,000K 120°
LWFLX300050W865G5015SF0000 Wave Flood Light X300 50W 865 15D G5 50 7,500 150 3,000K 15°
LWFLX300050W865G5030SF0000 Wave Flood Light X300 50W 865 30D G5 50 7,500 150 4,000K 30°
LWFLX300050W865G5060SF0000 Wave Flood Light X300 50W 865 60D G5 50 7,500 150 4,000K 60°
LWFLX300050W865G5120SF0000 Wave Flood Light X300 50W 865 120D G5 50 7,500 150 6,500K 120°
LWFLX410100W830G5015SFS100 Wave Flood Light X410 100W 830 15D G5 50 7,500 150 6,500K 15°
LWFLX410100W830G5030SFS100 Wave Flood Light X410 100W 830 30D 10KA G5 100 15,000 150 3,000K 30°
LWFLX410100W830G5060SFS100 Wave Flood Light X410 100W 830 60D 10KA G5 100 15,000 150 3,000K 60°
LWFLX410100W840G5015SFS100 Wave Flood Light X410 100W 840 15D 10KA G5 100 15,000 150 4,000K 15°
LWFLX410100W840G5030SFS100 Wave Flood Light X410 100W 840 30D 10KA G5 100 15,000 150 4,000K 30°
LWFLX410100W840G5060SFS100 Wave Flood Light X410 100W 840 60D 10KA G5 100 15,000 150 6,500K 60°
LWFLX410100W865G5015SFS100 Wave Flood Light X410 100W 865 15D 10KA G5 100 15,000 150 6,500K 15°
LWFLX410100W865G5030SFS100 Wave Flood Light X410 100W 865 30D 10KA G5 150 22,500 150 3,000K 30°
LWFLX410100W865G5060SFS100 Wave Flood Light X410 100W 865 60D 10KA G5 150 22,500 150 3,000K 60°
LWFLX460150W830G5015SFS100 Wave Flood Light X460 150W 830 15D 10KA G5 150 22,500 150 4,000K 15°
LWFLX460150W830G5030SFS100 Wave Flood Light X460 150W 830 30D 10KA G5 150 22,500 150 4,000K 30°
LWFLX460150W830G5060SFS100 Wave Flood Light X460 150W 830 60D 10KA G5 150 22,500 150 6,500K 60°
LWFLX460150W830G5120SFS100 Wave Flood Light X460 150W 830 120D 10KA G5 150 22,500 150 6,500K 120°
LWFLX460150W840G5015SFS100 Wave Flood Light X460 150W 840 15D 10KA G5 150 22,500 150 3,000K 15°
LWFLX460150W840G5030SFS100 Wave Flood Light X460 150W 840 30D 10KA G5 150 22,500 150 3,000K 30°
LWFLX460150W840G5060SFS100 Wave Flood Light X460 150W 840 60D 10KA G5 150 22,500 150 4,000K 60°
LWFLX460150W840G5120SFS100 Wave Flood Light X460 150W 840 120D 10KA G5 150 22,500 150 4,000K 120°
LWFLX460150W865G5015SFS100 Wave Flood Light X460 150W 865 15D 10KA G5 150 22,500 150 6,500K 15°
LWFLX460150W865G5030SFS100 Wave Flood Light X460 150W 865 30D 10KA G5 150 22,500 150 6,500K 30°
LWFLX460150W865G5060SFS100 Wave Flood Light X460 150W 865 60D 10KA G5 150 22,500 150 6,500K 60°
LWFLX460150W865G5120SFS100 Wave Flood Light X460 150W 865 120D 10KA G5 150 22,500 150 6,500K 120°
LWFLX510200W830G5015SFS100 Wave Flood Light X510 200W 830 15D 10KA G5 200 30,000 150 3,000K 15°
LWFLX510200W830G5030SFS100 Wave Flood Light X510 200W 830 30D 10KA G5 200 30,000 150 3,000K 30°
LWFLX510200W830G5060SFS100 Wave Flood Light X510 200W 830 60D 10KA G5 200 30,000 150 3,000K 60°
LWFLX510200W840G5015SFS100 Wave Flood Light X510 200W 840 15D 10KA G5 200 30,000 150 4,000K 15°
LWFLX510200W840G5030SFS100 Wave Flood Light X510 200W 840 30D 10KA G5 200 30,000 150 4,000K 30°
LWFLX510200W840G5060SFS100 Wave Flood Light X510 200W 840 60D 10KA G5 200 30,000 150 4,000K 60°
LWFLX510200W865G5015SFS100 Wave Flood Light X510 200W 865 15D 10KA G5 200 30,000 150 6,500K 15°
LWFLX510200W865G5030SFS100 Wave Flood Light X510 200W 865 30D 10KA G5 200 30,000 150 6,500K 30°
LWFLX600300W830G6015SFS200 Wave Flood Light X600 300W 830 15D 20KA G6 300 51,000 170 3,000K 15°
LWFLX600300W830G6030SFS200 Wave Flood Light X600 300W 830 30D 20KA G6 300 51,000 170 3,000K 30°
LWFLX600300W830G6060SFS200 Wave Flood Light X600 300W 830 60D 20KA G6 300 51,000 170 3,000K 60°
LWFLX600300W830G6090SFS200 Wave Flood Light X600 300W 830 90D 20KA G6 300 51,000 170 3,000K 90°
LWFLX600300W830G6120SFS200 Wave Flood Light X600 300W 830 120D 20KA G6 300 51,000 170 3,000K 120°
LWFLX600300W840G6015SFS200 Wave Flood Light X600 300W 840 15D 20KA G6 300 51,000 170 4,000K 15°
LWFLX600300W840G6030SFS200 Wave Flood Light X600 300W 840 30D 20KA G6 300 51,000 170 4,000K 30°
LWFLX600300W840G6060SFS200 Wave Flood Light X600 300W 840 60D 20KA G6 300 51,000 170 4,000K 60°
LWFLX600300W840G6090SFS200 Wave Flood Light X600 300W 840 90D 20KA G6 300 51,000 170 4,000K 90°
LWFLX600300W840G6120SFS200 Wave Flood Light X600 300W 840 120D 20KA G6 300 51,000 170 4,000K 120°
LWFLX600300W865G6015SFS200 Wave Flood Light X600 300W 865 15D 20KA G6 300 51,000 170 6,500K 15°
LWFLX600300W865G6030SFS200 Wave Flood Light X600 300W 865 30D 20KA G6 300 51,000 170 6,500K 30°
LWFLX600300W865G6060SFS200 Wave Flood Light X600 300W 865 60D 20KA G6 300 51,000 170 6,500K 60°
LWFLX600300W865G6090SFS200 Wave Flood Light X600 300W 865 90D 20KA G6 300 51,000 170 6,500K 90°
LWFLX600300W865G6120SFS200 Wave Flood Light X600 300W 865 120D 20KA G6 300 51,000 170 6,500K 120°
LWFLX600400W830G6015SFS200 Wave Flood Light X600 400W 830 15D 20KA G6 400 68,000 170 3,000K 15°
LWFLX600400W830G6030SFS200 Wave Flood Light X600 400W 830 30D 20KA G6 400 68,000 170 3,000K 30°
LWFLX600400W830G6060SFS200 Wave Flood Light X600 400W 830 60D 20KA G6 400 68,000 170 3,000K 60°
LWFLX600400W830G6090SFS200 Wave Flood Light X600 400W 830 90D 20KA G6 400 68,000 170 3,000K 90°
LWFLX600400W830G6120SFS200 Wave Flood Light X600 400W 830 120D 20KA G6 400 68,000 170 3,000K 120°
LWFLX600400W840G6015SFS200 Wave Flood Light X600 400W 840 15D 20KA G6 400 68,000 170 4,000K 15°
LWFLX600400W840G6030SFS200 Wave Flood Light X600 400W 840 30D 20KA G6 400 68,000 170 4,000K 30°
LWFLX600400W840G6060SFS200 Wave Flood Light X600 400W 840 60D 20KA G6 400 68,000 170 4,000K 60°
LWFLX600400W840G6090SFS200 Wave Flood Light X600 400W 840 90D 20KA G6 400 68,000 170 4,000K 90°
LWFLX600400W840G6120SFS200 Wave Flood Light X600 400W 840 120D 20KA G6 400 68,000 170 4,000K 120°
LWFLX600400W865G6015SFS200 Wave Flood Light X600 400W 865 15D 20KA G6 400 68,000 170 6,500K 15°
LWFLX600400W865G6030SFS200 Wave Flood Light X600 400W 865 30D 20KA G6 400 68,000 170 6,500K 30°
LWFLX600400W865G6060SFS200 Wave Flood Light X600 400W 865 60D 20KA G6 400 68,000 170 6,500K 60°
LWFLX600400W865G6090SFS200 Wave Flood Light X600 400W 865 90D 20KA G6 400 68,000 170 6,500K 90°
LWFLX600400W865G6120SFS200 Wave Flood Light X600 400W 865 120D 20KA G6 400 68,000 170 6,500K 120°
LWFLX685200W865G6060SFS100 Wave Flood Light X685 200W 865 60D 10KA G6 200 30,000 150 3,000K 60°
LWFLX745500W830G6015SFS200 Wave Flood Light X745 500W 830 15D 20KA G6 500 85,000 170 3,000K 15°
LWFLX745500W830G6015SFS200 Wave Flood Light X745 500W 830 15D 20KA G6 500 85,000 170 3,000K 30°
LWFLX745500W830G6060SFS200 Wave Flood Light X745 500W 830 30D 20KA G6 500 85,000 170 3,000K 60°
LWFLX745500W830G6090SFS200 Wave Flood Light X745 500W 830 90D 20KA G6 500 85,000 170 3,000K 90°
LWFLX745500W830G6120SFS200 Wave Flood Light X745 500W 830 120D 20KA G6 500W 85,000 170 3,000K 120°
LWFLX745500W840G6015SFS200 Wave Flood Light X745 500W 840 15D 20KA G6 500W 85,000 170 4,000K 15°
LWFLX745500W840G6030SFS200 Wave Flood Light X745 500W 840 30D 20KA G6 500W 85,000 170 4,000K 30°
LWFLX745500W840G6060SFS200 Wave Flood Light X745 500W 840 60D 20KA G6 500W 85,000 170 4,000K 60°
LWFLX745500W840G6090SFS200 Wave Flood Light X745 500W 840 90D 20KA G6 500W 85,000 170 4,000K 90°
LWFLX745500W840G6120SFS200 Wave Flood Light X745 500W 840 120D 20KA G6 500W 85,000 170 4,000K 120°
LWFLX745500W865G6015SFS200 Wave Flood Light X745 500W 865 15D 20KA G6 500W 85,000 170 6,500K 15°
LWFLX745500W865G6030SFS200 Wave Flood Light X745 500W 865 30D 20KA G6 500W 85,000 170 6,500K 30°
LWFLX745500W865G6060SFS200 Wave Flood Light X745 500W 865 60D 20KA G6 500W 85,000 170 6,500K 60°
LWFLX745500W865G6090SFS200 Wave Flood Light X745 500W 865 90D 20KA G6 500W 85,000 170 6,500K 90°
LWFLX745500W865G6120SFS200 Wave Flood Light X745 500W 865 120D 20KA G6 500W 85,000 170 6,500K 120°
LWFLX745600W830G6015SFS200 Wave Flood Light X745 600W 830 15D 20KA G6 600W 102,000 170 3,000K 15°
LWFLX745600W830G6030SFS200 Wave Flood Light X745 600W 830 30D 20KA G6 600W 102,000 170 3,000K 30°
LWFLX745600W830G6060SFS200 Wave Flood Light X745 600W 830 60D 20KA G6 600W 102,000 170 3,000K 60°
LWFLX745600W830G6090SFS200 Wave Flood Light X745 600W 830 90D 20KA G6 600W 102,000 170 3,000K 90°
LWFLX745600W830G6120SFS200 Wave Flood Light X745 600W 830 120D 20KA G6 600W 102,000 170 3,000K 120°
LWFLX745600W840G6015SFS200 Wave Flood Light X745 600W 840 15D 20KA G6 600W 102,000 170 4,000K 15°
LWFLX745600W840G6030SFS200 Wave Flood Light X745 600W 840 30D 20KA G6 600W 102,000 170 4,000K 30°
LWFLX745600W840G6060SFS200 Wave Flood Light X745 600W 840 60D 20KA G6 600W 102,000 170 4,000K 60°
LWFLX745600W840G6090SFS200 Wave Flood Light X745 600W 840 90D 20KA G6 600W 102,000 170 4,000K 90°
LWFLX745600W840G6120SFS200 Wave Flood Light X745 600W 840 120D 20KA G6 600W 102,000 170 4,000K 120°
LWFLX745600W865G6015000000 Wave Flood Light X745 600W 865 15D 20KA G6 600W 102,000 170 6,500K 15°
LWFLX745600W865G6030SFS200 Wave Flood Light X745 600W 865 30D 20KA G6 600W 102,000 170 6,500K 30°
LWFLX745600W865G6060SFS200 Wave Flood Light X745 600W 865 60D 20KA G6 600W 102,000 170 6,500K 60°
LWFLX745600W865G6090SFS200 Wave Flood Light X745 600W 865 90D 20KA G6 600W 102,000 170 6,500K 90°
LWFLX745600W865G6120SFS200 Wave Flood Light X745 600W 865 120D 20KA G6 600W 102,000 170 6,500K 120°
Feature Wave Flood Light
Materials Die cast aluminium & tempered glass
Driver External LED Driver (within casing)
Life Time (hours) 50,000
Finishing Color Dark Grey
Operating Temp (°C) -20°C – 50°C
Working Humidity (%RH) 10-90
Storage Temp (°C) 10°C-65°C

APPLICATIONS


Smart Pole

Sports Facilities

Industrial & Manufacturing

Parking Areas
Qubit Solar Street Light

Ports & Terminals


Qubit Solar Street light G1

Qubit Solar Street light G1

by | Apr 24, 2025

Home › LED Lighting Solutions ›  Outdoor LED Lighting › Qubit Solar Street Light G1

QUBIT SOLAR STREET LIGHT G1

The Qubit Solar Street Light G1 by LED Vision Sdn Bhd is an innovative, energy-efficient outdoor lighting solution designed for modern infrastructure needs. Featuring an all-in-one design, high-performance LED lighting, and a durable monocrystalline solar panel, it offers reliable illumination with minimal maintenance. With options up to 120W, a 2-day battery autonomy, and robust construction, it’s ideal for roads, walkways, compounds, and parking areas. Approved by JKR and built to withstand harsh environments, the Qubit G1 delivers bright, sustainable lighting wherever it’s needed.

Features and benefits

  • Excellent heat dissipation
  • All-in-one design, easy for installation and adjustment
  • High Efficiency LED
  • 2 Days Autonomy Battery Capacity
  • High Efficiency Monocrystalline Solar Panel
Download Specs
Contact Our Sales
Overview Features Specification Applications Project Gallery

PRODUCT OVERVIEW



The Qubit Solar Street Light G1 is a high-performance, self-powered lighting solution engineered for areas where dependable illumination and energy efficiency are essential. Its integrated solar panel, LED luminaire, and battery system work together to provide consistent lighting while reducing reliance on conventional electrical infrastructure.

Designed for durability and long-term outdoor use, the Qubit G1 offers up to 120W of lighting power and 2-day battery autonomy, making it suitable for roads, pedestrian routes, parking areas, compounds, and public spaces. With its robust construction and JKR approval, it provides a practical and sustainable lighting solution for modern infrastructure projects.

KEY FEATURES



New Generation LED’s

New generation high bright SMD, combined with integrated lens and lower current, which increases lumen flux by 10% and decreases light attenuation.

Secondary Optical Design

Secondary optical design, specially for solar street light, which maximally balances uniformity and illumination, while decreasing dispersion and reducing the color reproduction.

Lithium Battery

High energy density A-level batteries, combined with new protection plates and temperature control protection, which are safer and of longer cycling life. LiFePO4 battery optional.

Solar Panel

Top quality monocrystalline silicon wafer, while improving packaging materials and technology, upgraded light transmittance, anti-aging performance and power generation capacity.

Light Distribution

The G1 Solar Street Light by AdvanLED features a wide and uniform light distribution, ensuring bright and consistent coverage over roads, pathways, and open areas. Designed for maximum efficiency and visibility, it enhances safety with minimal energy use.

SPECIFICATION


Feature Qubit Solar Street Light G1
Power Consumption 80W | 120W
Luminous Efficacy 160 lm/W
Colour Rendering Index (CRI) 70
Beam Angle (°) Type II
Battery Voltage 25.6
Battery Type LiFePO4 ( Lithium Iron Phosphate)
Operating Temp Power charge: 0°C – 55°C
Power discharge: -20°C – 60°C
Battery Life Cycle ≥ 2000 times
IP Rating IP65
IK Rating Ik08
Product Code Product Description Power (W) Battery Capacity (Whr) Solar Panel (W) Luminance (lm) CCT
LQSSX15D080W735G1TP2RI00V2 Qubit Solar Street Light X15D 80W 735 TP2 Dim G1 80 1536 160 12,800 3500K
LQSSX17D120W735G1TP2RI00V2 Qubit Solar Street Light X17D 120W 735 TP2 Dim G1 120 2304 240 19,200 3500K
Feature Qubit Solar Street Light G1
Materials Aluminum, SPCC Iron
Finishing Color Black
Operating Temp (°C) -20°C – 50°C
Working Humidity (%RH) 10 ~ 90
Storage Temp (°C) -20°C-45°CC
Solar Voltage (Vdc) DC36V
Solar Type Mono-crystalline Silicon Panel

APPLICATIONS


Smart Pole

Highways

Urban & City Roads

Residential Streets
Qubit Solar Street Light

Industrial Areas
Qubit Solar Street Light

Commercial Areas


STREET LIGHT CERTIFICATION

JKR EMAL

Download

Sirim Tested

Download

Qubit Flood Light G1

Qubit Flood Light G1

by | Apr 24, 2025

PRODUCTS / OUTDOOR LED LIGHTING / QUBIT FLOOD LIGHT G1

QUBIT FLOOD LIGHT G1

The Qubit Flood Light G1 is a high-performance LED lighting solution designed for outdoor and industrial spaces. Built with durable materials and advanced lighting technology, it delivers bright, wide light coverage with excellent energy efficiency. Available in 30W to 200W, it’s perfect for sports arenas, commercial areas, and public spaces. With a long lifespan of up to 50,000 hours and protection against water, dust, and surges, Qubit Flood Light G1 is made to last in any environment.

Features and benefits

  • Energy efficiency performance – 130 lm/w
  • Lower energy consumption and maintenance costs provide long-term savings.
  • Long-lasting construction with high-quality materials for extended lifespan and reliability.
  • Efficient Heat Dissipation
  • Built in 90° & 60° lens for better light distribution.
Download PDF Here
Contact Our Sales
Feature Qubit Flood Light G1
Power Consumption 30W / 50W / 100W / 150W / 200W options
Luminous Efficacy 130 lm/W
Input Voltage 220-250
Power Factor (PF) 50/60Hz
Input Voltage ≥ 0.9
Beam Angle 60° ,90°
Dimmable No
THD (%) ≤ 20
IK Rating Ik07
IP Rating IP66

 Qubit Flood Light G1 – Product Variants

Product Code Product Description Power (W) Luminance (lm) CCT Built-in Surge Protection
LQFLX225030W830G1090DF0000 Qubit Flood Light X225 30W 830 90D G1 30 3,900 3,000K 2.5kV
LQFLX225030W830G1060DF0000 Qubit Flood Light X225 30W 830 60D G1 30 3,900 3,000K 2.5kV
LQFLX225030W840G1090DF0000 Qubit Flood Light X225 30W 840 90D G1 30 3,900 4,000K 2.5kV
LQFLX225030W840G1060DF0000 Qubit Flood Light X225 30W 840 60D G1 30 3,900 4,000K 2.5kV
LQFLX225030W865G1090DF0000 Qubit Flood Light X225 30W 865 90D G1 30 3,900 6,500K 2.5kV
LQFLX225030W865G1060DF0000 Qubit Flood Light X225 30W 865 60D G1 30 3,900 6,500K 2.5kV
LQFLX305050W830G1090DF0000 Qubit Flood Light X305 50W 830 90D G1 50 6,500 3,000K 2.5kV
LQFLX305050W830G1060DF0000 Qubit Flood Light X305 50W 830 60D G1 50 6,500 3,000K 2.5kV
LQFLX305050W840G1090DF0000 Qubit Flood Light X305 50W 840 90D G1 50 6,500 4,000K 2.5kV
LQFLX305050W840G1060DF0000 Qubit Flood Light X305 50W 840 60D G1 50 6,500 4,000K 2.5kV
LQFLX305050W865G1090DF0000 Qubit Flood Light X305 50W 865 90D G1 50 6,500 6,500K 2.5kV
LQFLX305050W865G1060DF0000 Qubit Flood Light X305 50W 865 60D G1 50 6,500 6,500K 2.5kV
LQFLX395100W830G1060DFS100 Qubit Flood Light X395 100W 830 60D 10KA G1 100 13,000 3,000K 4kV
LQFLX395100W830G1090DFS100 Qubit Flood Light X395 100W 830 90D 10KA G1 100 13,000 3,000K 4kV
LQFLX395100W840G1060DFS100 Qubit Flood Light X395 100W 840 60D 10KA G1 100 13,000 4,000K 4kV
LQFLX395100W840G1090DFS100 Qubit Flood Light X395 100W 840 90D 10KA G1 100 13,000 4,000K 4kV
LQFLX395100W865G1060DFS100 Qubit Flood Light X395 100W 865 60D 10KA G1 100 13,000 6,500K 4kV
LQFLX395100W865G1090DFS100 Qubit Flood Light X395 100W 865 90D 10KA G1 100 13,000 6,500K 4kV
LQFLX470150W830G1060DFS100 Qubit Flood Light X470 150W 830 60D 10KA G1 150 19,500 3,000K 4kV
LQFLX470150W830G1090DFS100 Qubit Flood Light X470 150W 830 90D 10KA G1 150 19,500 3,000K 4kV
LQFLX470150W840G1060DFS100 Qubit Flood Light X470 150W 840 60D 10KA G1 150 19,500 4,000K 4kV
LQFLX470150W840G1090DFS100 Qubit Flood Light X470 150W 840 90D 10KA G1 150 19,500 4,000K 4kV
LQFLX470150W865G1060DFS100 Qubit Flood Light X470 150W 865 60D 10KA G1 150 19,500 6,500K 4kV
LQFLX470150W865G1090DFS100 Qubit Flood Light X470 150W 865 90D 10KA G1 150 19,500 6,500K 4kV
LQFLX520200W830G1060DFS100 Qubit Flood Light X520 200W 830 60D 10KA G1 200 26,000 3,000K 4kV
LQFLX520200W830G1090DFS100 Qubit Flood Light X520 200W 830 90D 10KA G1 200 26,000 3,000K 4kV
LQFLX520200W840G1060DFS100 Qubit Flood Light X520 200W 840 60D 10KA G1 200 26,000 4,000K 4kV
LQFLX520200W840G1090DFS100 Qubit Flood Light X520 200W 840 90D 10KA G1 200 26,000 4,000K 4kV
LQFLX520200W865G1060DFS100 Qubit Flood Light X520 200W 865 60D 10KA G1 200 26,000 6,500K 4kV
LQFLX520200W865G1090DFS100 Qubit Flood Light X520 200W 865 90D 10KA G1 200 26,000 6,500K 4kV



3,000K 4kV LQFLX520200W840G60I10KA G1 Qubit Flood Light X520 200W 840 60D 10kA G1 200 26,000 4,000K 4kV LQFLX520200W865G60I10KA G1 Qubit Flood Light X520 200W 865 60D 10kA G1 200 26,000 6,500K 4kV



Feature Qubit Flood Light G1
Materials Die cast aluminium & tempered glass
Driver Built-in
Life Time (hours) 50,000
Finishing Color Dark Grey
Operating Temp (°C) -20°C – 50°C
Working Humidity (%RH) 10-90
Storage Temp (°C) 10°C-65°C

Features

Die-cast aluminium & Tempered Glass

Die-cast aluminium is a strong, lightweight metal commonly used in lighting fixtures for its durability and resistance to corrosion. Tempered glass is toughened glass that’s heat-treated to be stronger and safer than regular glass. Together, they make the flood light sturdy, weather-resistant, and suitable for outdoor use.

External 10KA SPD

External 10KA SPD stands for Surge Protection Device with a 10,000-amp capacity. It protects the flood light from sudden voltage spikes, such as lightning or power surges, helping to prevent damage and extend the light’s lifespan—especially important for outdoor and industrial installations.

Light Distribution

Light distribution refers to how light spreads from a fixture, like a flood light, across an area. A 60° beam provides focused, narrow lighting ideal for highlighting specific spots, while a 90° beam offers wider coverage suitable for general area lighting. Choosing the right angle ensures better visibility, efficiency, and minimizes glare.

Qubit Street Light G1

Qubit Street Light G1

by | Apr 24, 2025

PRODUCTS / OUTDOOR LED LIGHTING / QUBIT STREET LIGHT G1

QUBIT STREET LIGHT G1

The AdvanLED Qubit Street Light G1 is a cutting-edge outdoor lighting solution engineered for performance, durability, and energy efficiency. Designed to meet the demands of modern urban infrastructure, this street light combines high-efficiency LEDs, robust construction, and smart features to deliver consistent, wide-area illumination. With a sleek design, dual mounting options, and superior light distribution, the Qubit G1 is ideal for roads, walkways, compounds, and parking areas. Certified with IP66 and IK08 ratings, it stands resilient against harsh environmental conditions, making it a reliable choice for long-term outdoor applications.

Features and benefits

  • Produces a bat-wing optical effect and provides bright, uniform illumination
  • Double compartment design enable easy installation, maintenance and adjustment
  • High Efficiency LED
  • Minimizing spill light and glare
  • It delivers over 140 lumens per watt for maximum brightness using minimal power.
Download PDF Here
Contact Our Sales
Feature Qubit Street Light G1
Power Consumption 80W | 100W | 120W | 150W | 180W | 200W
Luminous Efficacy 140 lm/W
Colour Rendering Index (CRI) ≥70
Input Voltage 220-250
Power Factor (PF) 50/60Hz
Input Voltage ≥ 0.9
Beam Angle Type II
Dimmable Yes
THD (%) ≤ 20
IK Rating Ik08
IP Rating IP66
Product Code Product Description Power (W) Luminance (lm) CCT
LQSLX500080W730G1TP2SVNE00 Qubit Street Light X500 80W 730 TP2 1-10V NEMA G1 80 11,200 3000K
LQSLX500080W740G1TP2SVNE00 Qubit Street Light X500 80W 740 TP2 1-10V NEMA G1 80 11,200 4000K
LQSLX560100W730G1TP2SVNE00 Qubit Street Light X560 100W 730 TP2 1-10V NEMA G1 100 14,000 3000K
LQSLX560100W740G1TP2SVNE00 Qubit Street Light X560 100W 740 TP2 1-10V NEMA G1 100 14,000 4000K
LQSLX560120W730G1TP2SVNE00 Qubit Street Light X560 120W 730 TP2 1-10V NEMA G1 120 16,800 3000K
LQSLX560120W740G1TP2SVNE00 Qubit Street Light X560 120W 740 TP2 1-10V NEMA G1 120 16,800 4000K
LQSLX615150W730G1TP2SVNE00 Qubit Street Light X615 150W 730 TP2 1-10V NEMA G1 150 21,000 3000K
LQSLX615150W740G1TP2SVNE00 Qubit Street Light X615 150W 740 TP2 1-10V NEMA G1 150 21,000 4000K
LQSLX615180W730G1TP2SVNE00 Qubit Street Light X615 180W 730 TP2 1-10V NEMA G1 180 25,200 3000K
LQSLX615180W740G1TP2SVNE00 Qubit Street Light X615 180W 740 TP2 1-10V NEMA G1 180 25,200 4000K
LQSLX675200W730G1TP2SVNE00 Qubit Street Light X675 200W 730 TP2 1-10V NEMA G1 200 28,000 3000K
LQSLX675200W740G1TP2SVNE00 Qubit Street Light X675 200W 740 TP2 1-10V NEMA G1 200 28,000 4000K
Feature Qubit Street Light G1
Materials Die cast aluminium & tempered glass
Driver External LED Driver
Life Time (hours) 50,000
Finishing Color Grey
Operating Temp (°C) -20°C – 50°C
Working Humidity (%RH) 10-90
Storage Temp (°C) 10°C-65°C
Ambient Temp (°C) 35°C

Features

Durable build

Built rugged with die-cast aluminum housing and fitted with high efficiency LEDs

Built-in Leveler

For accurate level installation

Built-in Breathing Valve

Prevent water condensation



Light Distribution

This diagram shows how the street light spreads its light. The blue line shows a wide horizontal spread, ideal for roads, while the red line shows a narrower vertical spread to reduce glare and focus light downward. It provides even, efficient lighting for outdoor areas.

Dual Mounting Option

Horizontal and vertical mount

STREET LIGHT CERTIFICATION

JKR EMAL

Download

Sirim Tested

Download
