EV2 Constant Voltage LED Driver

EV2 Constant Voltage LED Driver

PRODUCTS / SIMON LED LIGHTING / EV2 CONSTANT VOLTAGE LED DRIVER

EV2 CONSTANT VOLTAGE LED DRIVER

The EV2 Constant Voltage LED Driver is a high-performance, flicker-free power supply designed for LED strips and constant-voltage LED lighting systems. Engineered for reliability and long-term use, it delivers stable output, reduced eye strain, and a 50,000-hour lifetime, making it an economical solution for both residential and commercial applications.

The EV2 series supports ON/OFF control, as well as smart tunable white control via Simon Smart ZigBee and BLE mesh, enabling seamless integration into modern smart lighting systems. With high power factor (PF ≥0.95), isolated output, and SELV compliance, EV2 ensures safe and efficient operation.

Available in 24V and 48V outputs with power ratings from 40W up to 250W, the EV2 driver is suitable for a wide range of indoor LED lighting installations.

Key Features & Benefits

  • Constant voltage output: 24V DC / 48V DC

  • Flicker-free performance – reduces eye fatigue

  • Long lifetime: up to 50,000 hours

  • High power factor ≥0.95

  • SELV & isolated output for safety

  • Wide power range: 40W to 250W

  • Indoor IP20 rating

  • ON/OFF, ZigBee & Bluetooth (BLE) control options

  • Smart tunable white supported (selected models)

  • Compatible with Simon Smart ecosystem

Feature EV2 Constant Voltage LED Driver
Power Consumption 60w | 150w
Input Voltage 220-240
Power Factor (PF) ≥ 0.95
IP Rating IP20
Product Code Description Power (W) Output Current (mA)
N6524-0457 LED DRIVERCV 24V60W ON-OFF 60 1670
N6524-0458 LED DRIVERCV 24V150W ON-OFF 150 2500

WP26A Waterproof Empty Batten

WP26A Waterproof Empty Batten

PRODUCTS / SIMON LED LIGHTING / WP26A WATERPROOF EMPTY BATTEN

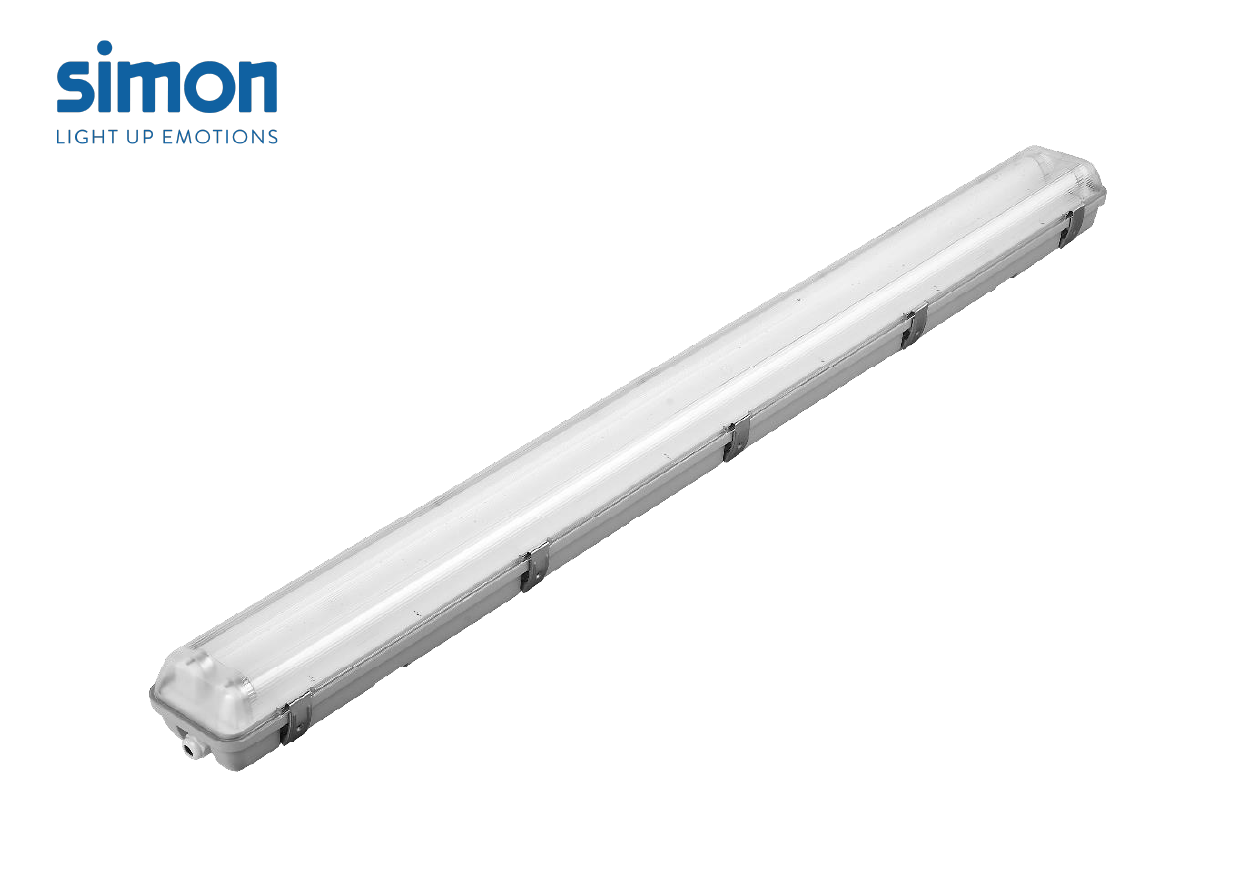

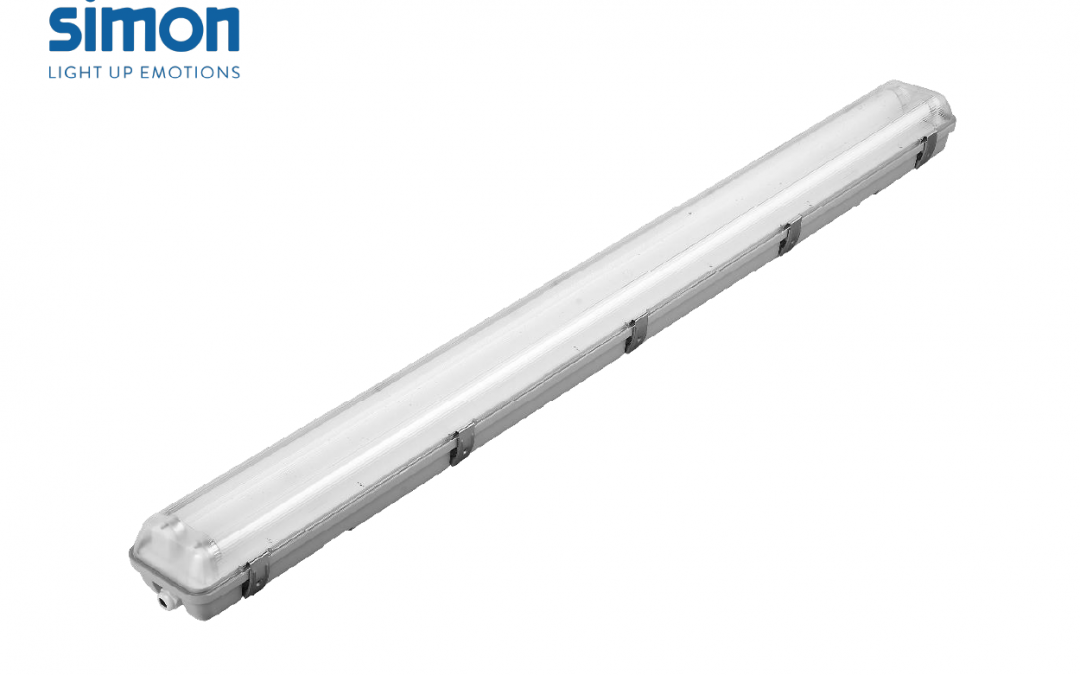

WP26A WATERPROOF EMPTY BATTEN

The WP26A Waterproof Empty Batten is a robust IP65-rated batten housing designed for use with T8 LED tubes. It supports single-end and double-end tube installation, offering high flexibility for various lighting retrofit and new installation projects.

Built with a durable polycarbonate housing and cover and secured by stainless steel metal clips, the WP26A ensures excellent sealing performance against dust, moisture, and corrosion. With an IK06 impact resistance rating, it is suitable for demanding environments such as car parks, corridors, industrial areas, and utility spaces.

Available in single or double tube configurations and 600mm / 1200mm lengths, the WP26A provides a reliable and cost-effective solution when paired with compatible T8 LED tubes. An emergency (EM) option is also available for safety lighting applications.

Key Features & Benefits

  • Waterproof empty batten housing (no light source included)

  • Compatible with T8 LED tubes

  • Single-end & double-end tube installation supported

  • IP65 dustproof & waterproof protection

  • IK06 impact resistance

  • Durable polycarbonate body & cover

  • Strong stainless steel clips for secure sealing

  • Surface-mounted installation

  • Single or double tube options available

  • Optional emergency (EM) version

Feature WP26A Waterproof Empty Batten
Product Type Waterproof Empty Batten
Compatible Lamp  T8 LED Tube
Tube Installation Single-end / Double-end
Input Voltage 220-240
Frequency 50 / 60 Hz
IP Rating IP65
Product Code Description Input voltage Product Size (MM)
N05E0-0281 WP26A WEATHERPROOF 4FT SINGLE TUBE (LED T8 MPTY BATTEN) 220-240V 1265x72x86
N05E0-0282 WP26A WEATHERPROOF 4FT DOUBLE TUBE (LED T8 MPTY BATTEN) 220-240V 1265x115x86
Feature CD20A SMD DownLight
Materials Polycarbonate (Cover & Body)
Finishing Color White
Operating Temp (°C) -20°C to +40°C
Storage Temp (°C) -40°C to +80°C

SS52C LED Strip Light

SS52C LED Strip Light

PRODUCTS / SIMON LED LIGHTING / SS52C LED STRIP LIGHT

SS52C LED STRIP LIGHT

The SS52C LED Strip Light is a premium 24V DC flexible LED strip designed for high-quality architectural, decorative, and accent lighting. With a minimum 5cm cutting unit, the strip is easy to customize and ideal for applications requiring precise length adjustment.

Featuring high color rendering (CRI ≥90, R9 ≥50), the SS52C restores true and natural colors, making it suitable for residential interiors, retail displays, cabinets, and hospitality spaces. The strip delivers stable light output, low SDCM (≤5), and a long lifetime of up to 50,000 hours (L70).

Available in multiple wattage options (5W to 13W per meter), standard CCTs (3000K / 4000K / 6500K), and optional Tunable White, the SS52C offers excellent flexibility. Compatibility with Simon Smart ZigBee and BLE systems allows seamless smart lighting integration.

Key Features & Benefits

  • 24V DC flexible LED strip
  • Minimum 5cm cutting unit for easy customization
  • High CRI ≥90, R9 ≥50 for accurate color rendering
  • Low SDCM ≤5 for consistent light output
  • Multiple wattage options: 5W / 8W / 10W / 13W per meter
  • Wide beam angle 120°
  • Long lifetime: 50,000 hours (L70)
  • Slim 8mm width, suitable for narrow profiles
  • Indoor IP20 rating
  • Optional Tunable White
  • Smart control compatible: Simon Smart ZigBee & BLE
Feature SS52C LED Strip Light
Power Consumption  5W / 8W / 10W / 13W per meter
Luminous Efficacy 75–95 lm/W (model dependent)
Colour Rendering Index (CRI) ≥90
Input Voltage 24
Power Factor (PF) ≥ 0.9
Beam Angle 120°
IP Rating IP20
Product Code Description Power (W) Luminous Flux@4000K (lm) CCT
N68E0-0109 SS52 COB 24V STRIP 8W/M-5M 320L 8MM 3000K 8 760 3000K
N68E0-0106 SS52 COB 24V STRIP 13W/M-5M 320L 8MM 3000K 13 1,105 3000K
N68E0-0107 SS52 COB 24V STRIP 13W/M-5M 320L 8MM 4000K 13 1,105 4000K
N68E0-0108 SS52 COB 24V STRIP 13W/M-5M 320L 8MM 6500K 13 1,105 6500K
Feature SS52C LED Strip Light
Strip size 5000 × 8 × 1.5 mm
Life Time (hours) 50,000
Length per Roll  5 m
Operating Temp (°C) -10°C to +40°C

CLL19 LED Linear Batten Light

CLL19 LED Linear Batten Light

PRODUCTS / SIMON LED LIGHTING / CLL19 LED Linear Batten Light

CLL19 LED Linear Batten Light

The CLL19 LED Linear Batten Light is a highly flexible indoor lighting solution designed for commercial, retail, educational, and residential applications. Featuring power selectable and CCT selectable technology, a single luminaire can adapt to multiple installation requirements, reducing stock complexity and project costs.

With up to 130 lm/W luminous efficacy, the CLL19 provides excellent energy efficiency and uniform light output. Users can easily select between multiple wattage levels and three colour temperatures (3000K / 4000K / 6500K) via built-in switches.

Designed for surface-mounted or suspended installation, the CLL19 offers a 50,000-hour lifetime, flicker-free performance, and optional microwave sensor or emergency (EM) function, making it a reliable and economical solution for everyday indoor lighting.

Key Features & Benefits

  • Power selectable in one luminaire – multiple wattages in a single product
  • 3CCT selectable: 3000K / 4000K / 6500K
  • High efficiency up to 130 lm/W
  • Long lifetime: 50,000 hours (L70)
  • Surface-mounted or suspended installation
  • Flicker-free driver for visual comfort
  • Low maintenance cost
  • Indoor IP20 rating
  • Optional microwave sensor & emergency (EM) versions
  • Slim, modern linear design
Feature CLL19 LED Linear Batten Light
Power Consumption L600 : 14W / 7W | L1200 : 40W / 35W / 30W / 20W | L1500 : 50W / 45W / 36W / 25W
Luminous Efficacy Up to 130 lm/W
Colour Rendering Index (CRI) ≥80
Input Voltage 220-240
Power Factor (PF) ≥ 0.9
THD (%) < 20
IP Rating IP20
Product Code Description Power (W) Luminance (lm) selectable CCT
N05E0-0291 CLL19 LED LINEAR LIGHT 14W/7W 3/4/6500K L600 (Sensor) 14 / 7 1,820@14W 3000/4000/6500K
N05E0-0296 CLL19 LED LINEAR LIGHT 40/35/30/20W 3/4/6500K L1200 (Sensor) 40/35/30/20 3,900@30W 3000/4000/6500K
N05E0-0302 CLL19 LED LINEAR LIGHT 50/45/36/25W 3/4/6500K L1500 (Sensor) 50/45/36/25 6,500@50W 3000/4000/6500K
Feature CLL19 LED Linear Batten Light
Materials  PC Cover + PC Body
Driver Constant Current
Life Time (hours) 50,000
Finishing Color White
Operating Temp (°C) -20°C to +40°C
Storage Temp (°C) -40°C to +80°C

WP26 LED Waterproof Batten Light

WP26 LED Waterproof Batten Light

PRODUCTS / SIMON LED LIGHTING / WP26 LED Waterproof Batten Light

WP26 LED Waterproof Batten Light

The WP26 LED Waterproof Batten Light is a high-efficiency, durable lighting solution designed for industrial, commercial, and outdoor environments. With an outstanding luminous efficacy of up to 150 lm/W, the WP26 delivers maximum brightness with minimal energy consumption.

Built with IP65 waterproof and dustproof protection, robust polycarbonate housing, and stainless steel clips, the WP26 ensures long-term reliability even in harsh conditions such as car parks, warehouses, corridors, workshops, and plant rooms.

The luminaire offers multiple wattage options from 10W to 48W, 4000K or 6500K colour temperature, and surface or pendant installation. With a 50,000-hour lifetime, flicker-free driver, and optional emergency (EM) function, WP26 is a cost-effective and maintenance-friendly lighting solution.

Key Features & Benefits

  • Ultra-high efficiency up to 150 lm/W
  • IP65 waterproof & dustproof – suitable for harsh environments
  • Robust polycarbonate housing with stainless steel metal clips
  • Wide wattage range: 10W / 18W / 36W / 48W
  • Colour temperature options: 4000K & 6500K
Feature WP26 LED Batten Light
Power Consumption 10W | 18W | 36W | 48W
Luminous Efficacy Up to 150 lm/W
Colour Rendering Index (CRI) ≥80
UGR <19
Input Voltage 220-240
Power Factor (PF) ≥ 0.9
Beam Angle 120°
Dimmable No
THD (%) < 15
IP Rating IP65
Product Code Description Power (W) Luminance (lm) CCT
N05E0-0180 WP26 LED WEATHERPROOF 10W4000K 600 10 1,500 4000K
N05E0-0183 WP26 LED WEATHERPROOF 18W6500K 1200 18 2,700 6500K
N05E0-0185 WP26 LED WEATHERPROOF 36W6500K 1200 36 5,400 6500K
N05E0-0187 WP26 LED WEATHERPROOF 48W6500K 1500 48 7,200 6500K
Feature CD20A SMD DownLight
Materials Polycarbonate & Stainless Steel
Driver Constant Current
Life Time (hours) 50,000
Finishing Color Grey / White
Operating Temp (°C) -20°C to +40°C
Storage Temp (°C) -30°C to +80°C
