CD33 LED Downlight

CD33 LED Downlight

PRODUCTS / SIMON LED LIGHTING / CD33 LED DOWNLIGHT

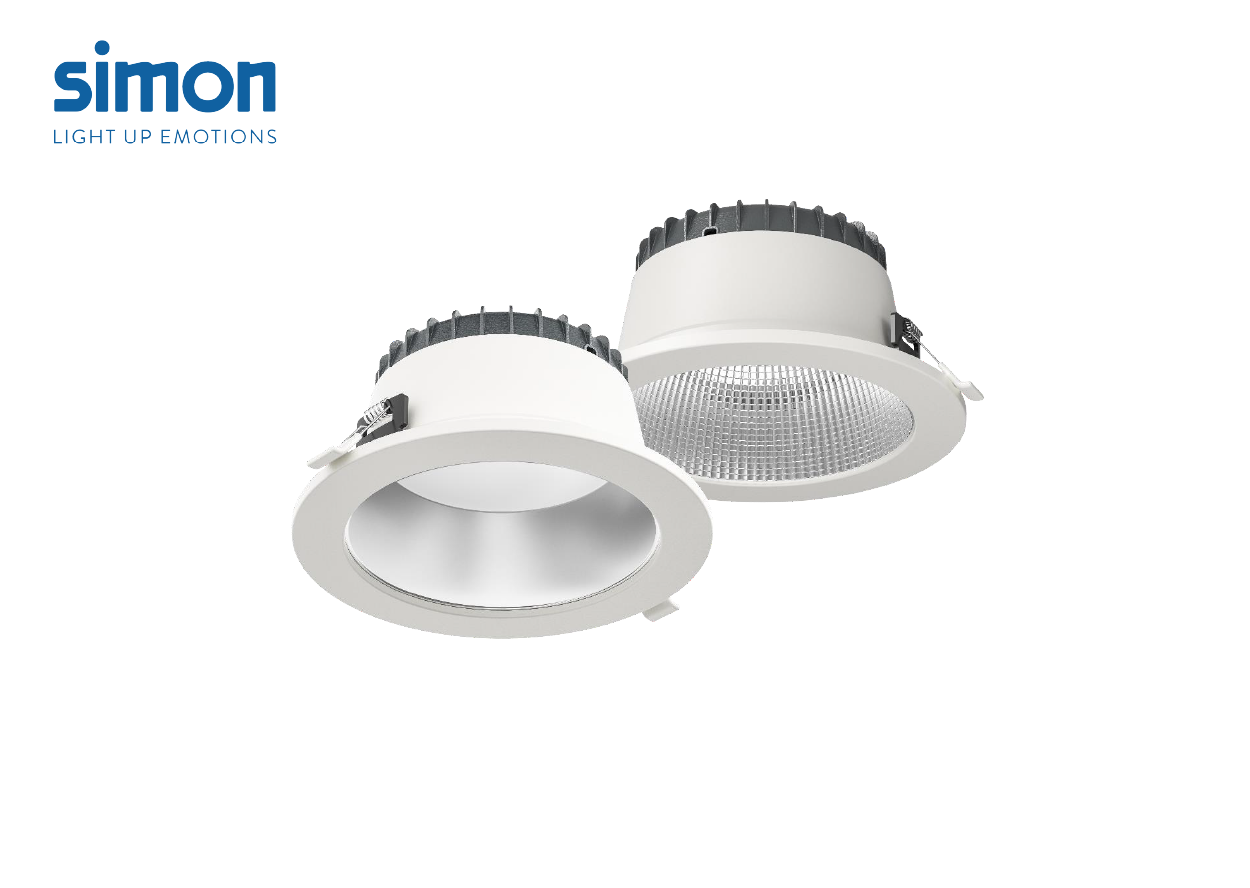

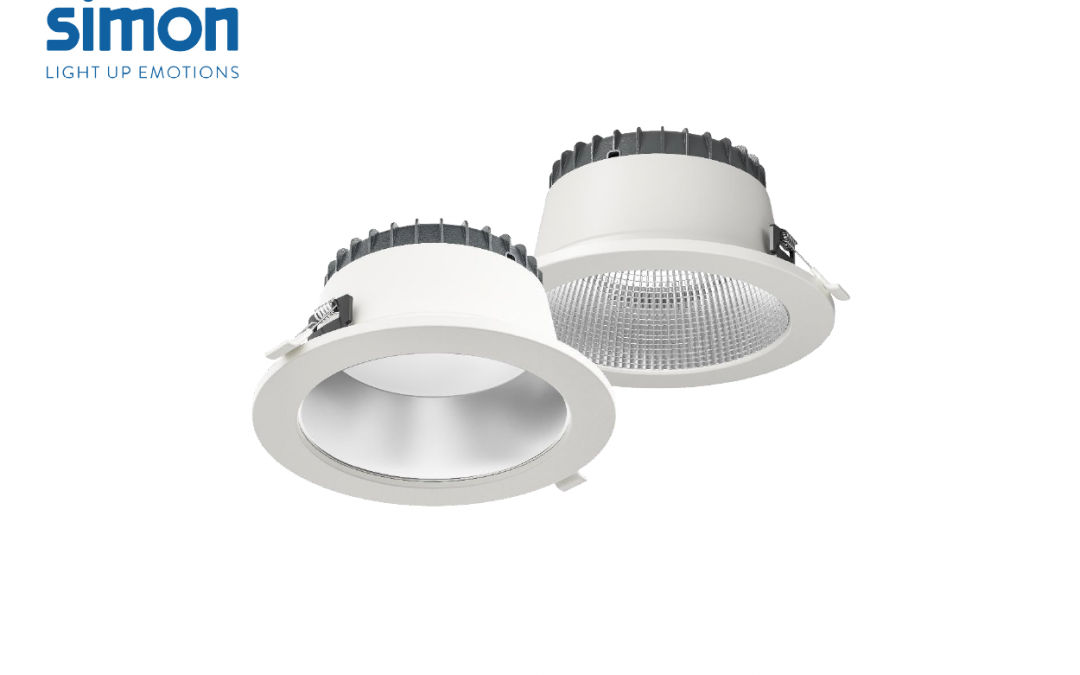

CD33 LED Downlight

The CD33 LED Downlight is a professional-grade recessed lighting solution designed for offices, commercial spaces, and high-end residential applications. Featuring UGR<19 glare control, it ensures visual comfort for prolonged working environments such as offices, meeting rooms, and retail spaces.

Equipped with 3CCT selectable technology (3000K / 4000K / 5700K), the CD33 adapts easily to different lighting scenarios using a built-in switch. The luminaire offers a wide power range from 10W to 50W and multiple cutout sizes, making it suitable for various ceiling designs.

Key Features & Benefits

  • UGR <19 glare control – ideal for office & commercial environments
  • 3CCT selectable: 3000K / 4000K / 5700K via built-in switch
  • Wide power range: 10W to 50W
  • Multiple cutout sizes: 100mm to 250mm
  • High luminous efficacy: up to 140 lm/W (LED module)
Feature CD33 LED Downlight
Power Consumption 20W | 28W | 35W | 40W
Luminous Efficacy Up to 120 lm/W
Colour Rendering Index (CRI) ≥80
UGR <19
Input Voltage 220-240
Power Factor (PF) ≥ 0.9
Beam Angle 60° / 80°
Dimmable No
THD (%) ≤ 20
IP Rating IP64
Product Code Description Power (W) Luminance (lm) CCT
N03E0-1551 CD33 DOWNLIGHT 20W R150 WITH DIFFUSOR 20 2,400 3000K-4000K-5700K
N03E0-1552 CD33 DOWNLIGHT 28W R175 WITH DIFFUSOR 28 3,220 3000K-4000K-5700K
N03E0-1554 CD33 DOWNLIGHT 35W R200 WITH DIFFUSOR 35 4,025 3000K-4000K-5700K
N03E0-1555 CD33 DOWNLIGHT 40W R250 WITH DIFFUSOR 40 4,800 3000K-4000K-5700K
Feature CD20A SMD DownLight
Materials Aluminum
Driver External LED Driver
Life Time (hours) 50,000
Finishing Color White
Operating Temp (°C) -20°C ~ +40°C
Storage Temp (°C) -20°C to +55°C

CD20A SMD LED Downlight

CD20A SMD LED Downlight

PRODUCTS / SIMON LED LIGHTING / CD20A SMD LED DOWNLIGHT

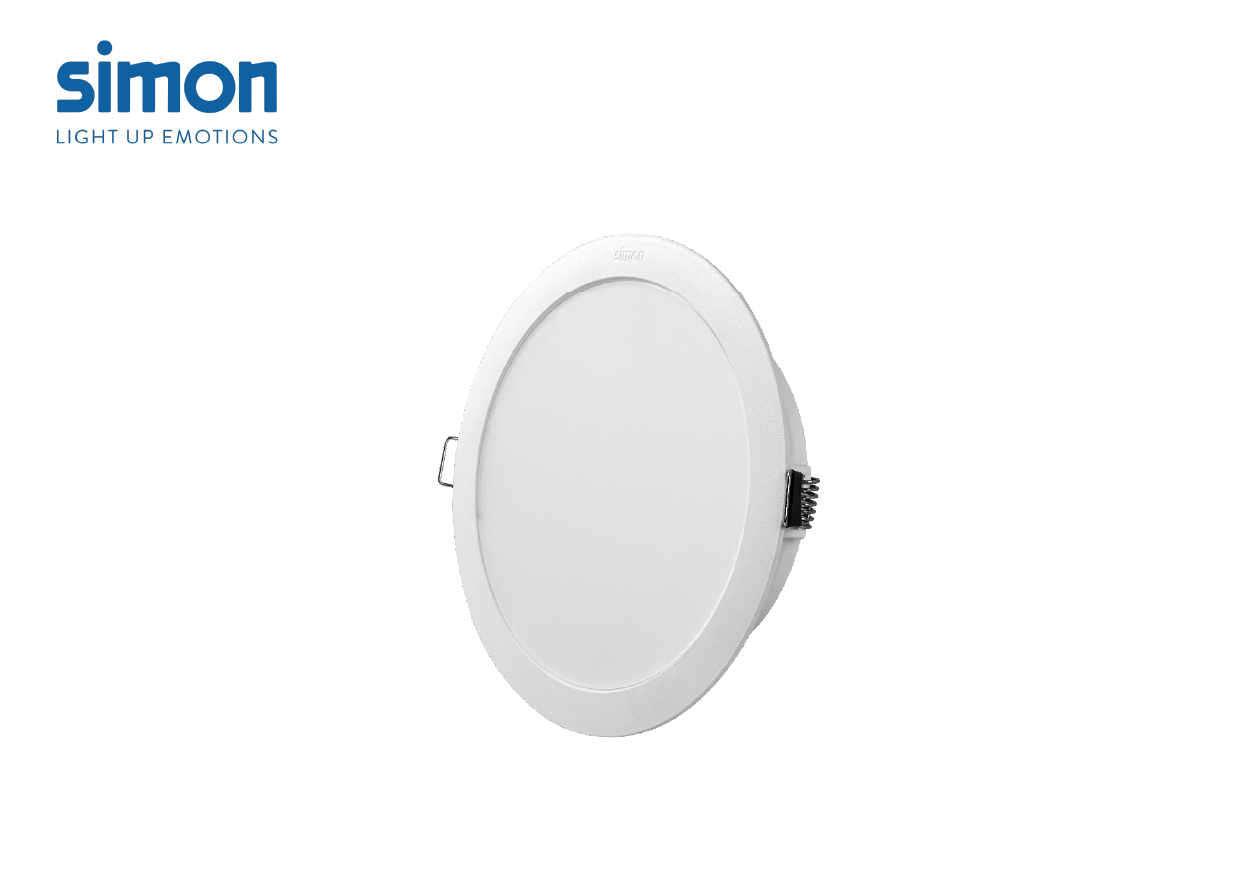

CD20A SMD LED DOWNLIGHT

The CD20A SMD Downlight by Simon Professional Lighting is a high-efficiency LED downlight designed for reliable and uniform illumination. Featuring advanced SMD LED technology, it delivers stable brightness, excellent light distribution, and long service life. Its slim and modern design makes it suitable for residential, commercial, and retail applications, providing both energy savings and visual comfort.

Built with quality materials and professional-grade performance, the CD20A SMD Downlight ensures consistent lighting output with low power consumption, making it an ideal choice for modern lighting installations.

Features and benefits

  • SMD LED technology for uniform light output

  • Energy-efficient and long lifespan

  • Modern, slim design

  • Suitable for residential and commercial applications

  • Stable and flicker-free lighting

Feature CD20A SMD Down Light
Power Consumption 9W | 14W | 23W
Luminous Efficacy Up to 165 lm/W
Colour Rendering Index (CRI) ≥80
UGR 28
Input Voltage 220-240
Power Factor (PF) ≥ 0.9
Beam Angle 100°
Dimmable No
THD (%) ≤ 13.5
IP Rating IP44 / IP20
Product Code Description Power (W) Luminance (lm) CCT
N03E0-1511 CD20A LED DOWNLIGHT 9W R125 3000K 9 900 3000K
N03E0-1512 CD20A LED DOWNLIGHT 9W R125 4000K 9 900 4000K
N03E0-1513 CD20A LED DOWNLIGHT 9W R125 6500K 9 900 6500K
N03E0-1514 CD20A LED DOWNLIGHT 14W R125 3000K 14 1,400 3000K
N03E0-1515 CD20A LED DOWNLIGHT 14W R125 4000K 14 1,400 4000K
N03E0-1516 CD20A LED DOWNLIGHT 14W R125 6500K 14 1,400 6500K
N03E0-1517 CD20A LED DOWNLIGHT 23W R125 3000K 23 2,420 3000K
N03E0-1518 CD20A LED DOWNLIGHT 23W R125 4000K 23 2,420 4000K
N03E0-1519 CD20A LED DOWNLIGHT 23W R125 6500K 23 2,420 6500K
Feature CD20A SMD DownLight
Materials Polypropylene (PP)
Driver External LED Driver
Life Time (hours) 50,000
Finishing Color Matte White
Operating Temp (°C) -20°C ~ +40°C
Storage Temp (°C) -30°C ~ +65°C
