NANO BARE CHANNEL

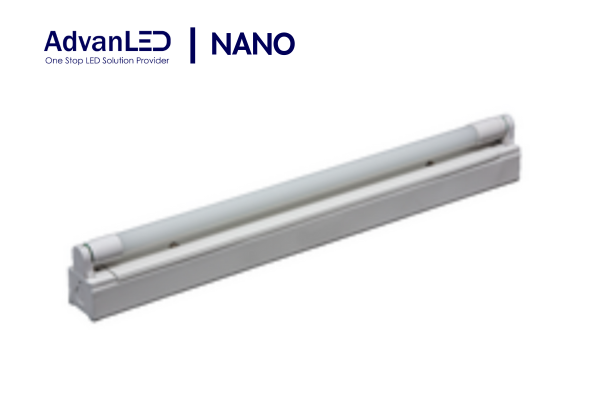

The AdvanLED Nano Bare Channel is a high-quality LED lighting solution designed for durability and performance. Built with a heavy gauge steel body and finished with a sleek white epoxy coating, it is ideal for use in factories, retail spaces, car parks, and other commercial environments. With various length and configuration options, this versatile fixture offers reliable and efficient lighting for a wide range of applications.

Features and benefits

Heavy gauged fully welded construction and die-formed
Metal End Caps for absolute batten rigidity
BESA fixing holes for easy mounting

Download PDF Here

Contact Our Sales

Feature	Nano Bare Channel
Thickness (mm)	0.3, 0.5
IP Rating	IP20
Colour Rendering Index (CRI)	80
Housing	Heavy gauge sheet steel body with fully welded end-cap
Surface Finishing	White epoxy powder coated & oven baked
Lamp Holder	Polycarbonate housing with copper place contact
Wire	Heat resistance 105°C, SIRIM approved material
Connector	UL, VDE safety approved material

Product Code	Product Description	Thickness (mm)
LNBC02FT0000000000001T0000	Nano Bare Channel 2FT 1T	0.3mm
LNBC02FT0000000000002T0000	Nano Bare Channel 2FT 2T	0.3mm
LNBC04FT0000000000001T0000	Nano Bare Channel 4FT 1T	0.3mm
LNBC04FT0000000000002T0000	Nano Bare Channel 4FT 2T	0.3mm
LNBC04FT0000000000001TEP00	Nano Bare Channel 4FT 1T Emergency Pack	0.3mm
LNBC04FT0000000000002TEP00	Nano Bare Channel 4FT 2T Emergency Pack	0.3mm
LNBC02FT0000000000001T00JK	Nano Bare Channel 2FT 1T JKR	0.5mm
LNBC02FT0000000000002T00JK	Nano Bare Channel 2FT 2T JKR	0.5mm
LNBC04FT0000000000001T00JK	Nano Bare Channel 4FT 1T JKR	0.5mm
LNBC04FT0000000000002T00JK	Nano Bare Channel 4FT 2T JKR	0.5mm
LNBC04FT0000000000001TEPJK	Nano Bare Channel 4FT 1T Emergency Pack JKR	0.5mm
LNBC04FT0000000000002TEPJK	Nano Bare Channel 4FT 2T Emergency Pack JKR	0.5mm

Product Code	Product Description
LNBC02FT0000000000001TMR00	Nano Bare Channel 2FT 1T Metal Reflector
LNBC02FT0000000000002TMR00	Nano Bare Channel 2FT 2T Metal Reflector
LNBC04FT0000000000001TMR00	Nano Bare Channel 4FT 1T Metal Reflector
LNBC04FT0000000000002TMR00	Nano Bare Channel 4FT 2T Metal Reflector
LNBCACC0SR0300000000000000	Nano Bare Channel Suspension Rod 300
LNBCACC0SR0400000000000000	Nano Bare Channel Suspension Rod 450
LNBCACC0SR0600000000000000	Nano Bare Channel Suspension Rod 600
LNBCACC0SR0900000000000000	Nano Bare Channel Suspension Rod 900
LNBCACC0SR1200000000000000	Nano Bare Channel Suspension Rod 1220
